For operation without
proxSafe Terminal!
3.8.3 Network connection without proxSafe terminal
If you choose to operate the flexx without using the proxSafe terminal, you may connect the
PC directly to the backplane PCB. In this case you should take care, that:
● the network cable is correctly connected to the DigiCon (see 3.8.1, picture 6)
● the jumpers on the backplane PCB are set according to the drawing below:

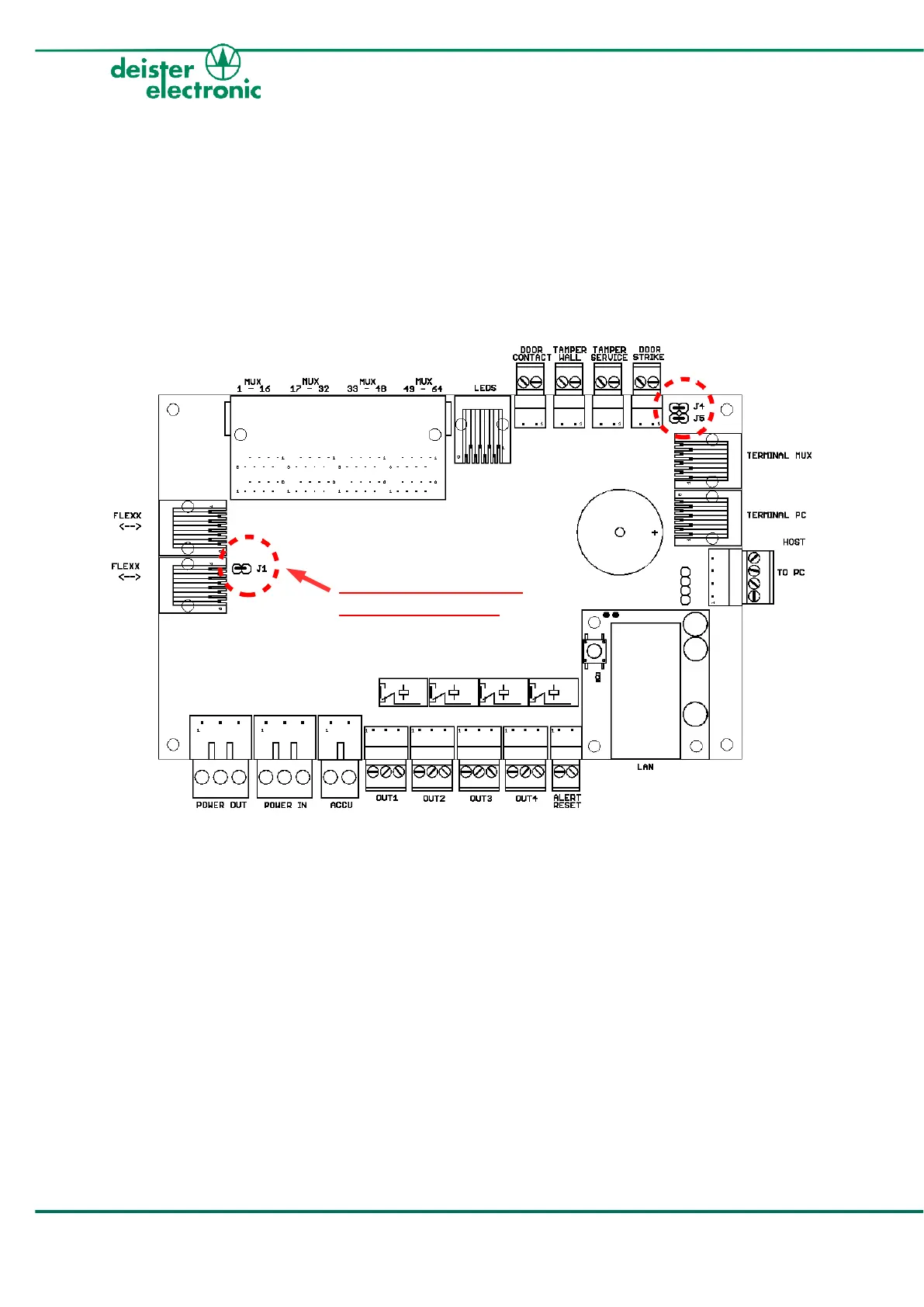

picture 3.8.3.1: jumper settings (J1, J4, J5) for Ethernet connected directly to backplane PCB (for use without proxSafe
terminal)
