V1213, 10.23
Resistance
Maximum allowable force on the tool.
X-safe
Calculated safety zone (minimum X-axis value), which will be used in the case a R-axis
is mounted. This to prevent finger to die collision. The indicated minimum value is
computed automatically from the die dimensions as follows:
X-SAFE = FS + ½ V in which:
FS = flat section on the back side of the V-grove
V = opening value
In this formula also a small additional safety value (0.5 mm) has been added.
X-safe turned (negative)
This safety value will be active if the die is used in the turned position. In this situation
parameter XT will be used as safety zone for the backgauge.

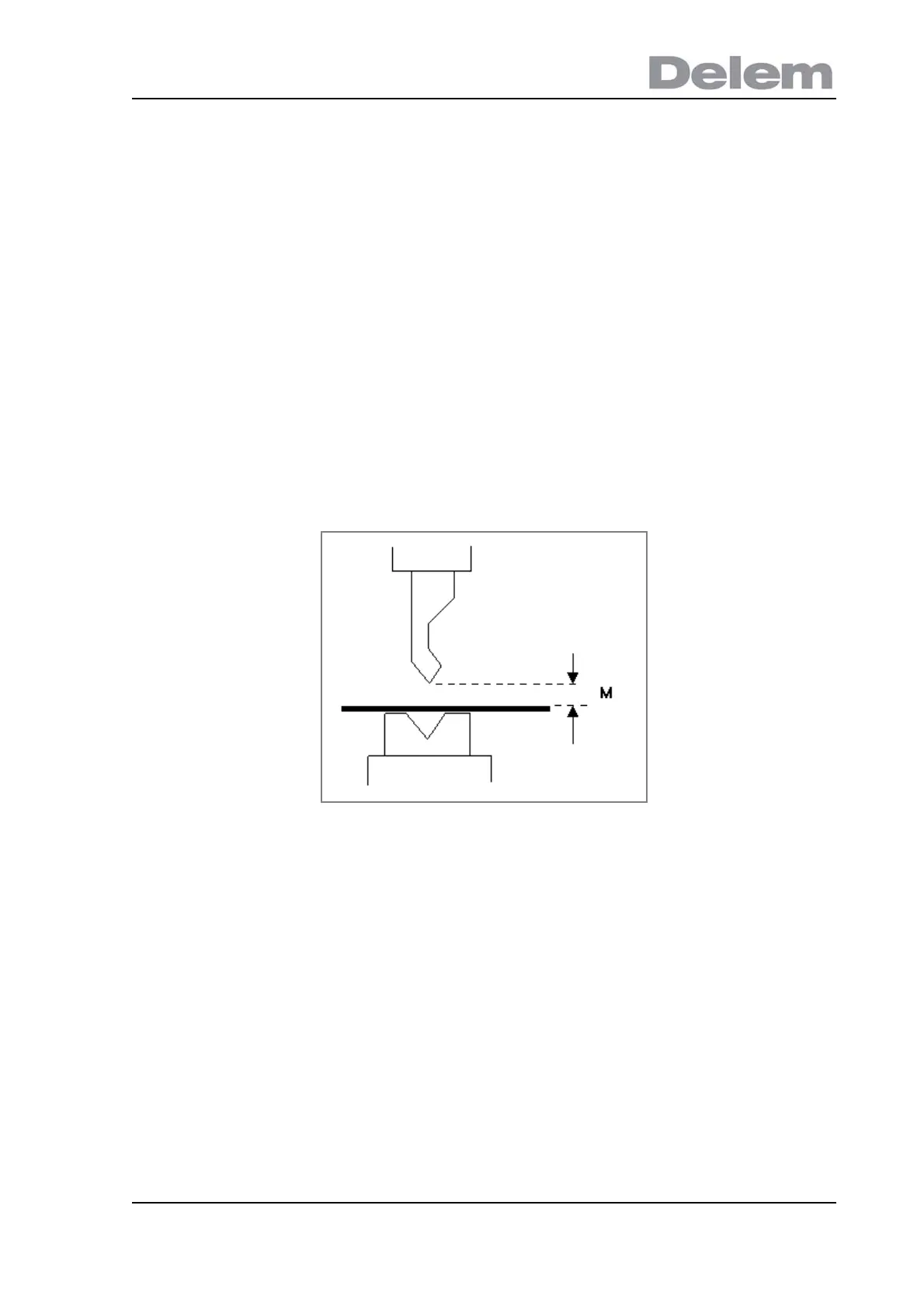

Mute
Muting distance. Distance above the sheet at which the speed change takes place.`
2nd X-safe
Second automatically computed safety zone (minimum X-axis value) to be used in case
a more complex die is used. The value is the distance from the middle of the V-opening
to the most outside point of the drawing of the die (on the back side). Also an extra
safety tolerance of 0.5 mm is added.
2nd X-safe turned (negative)
Second automatically calculated safety zone (minimum X-axis value) if the die is used in
the turned position.
These values are calculated each time the die drawing changes. These 2nd-values cannot be
changed manually. See for explanation on the safety zones the example drawing.
