V1213, 10.40

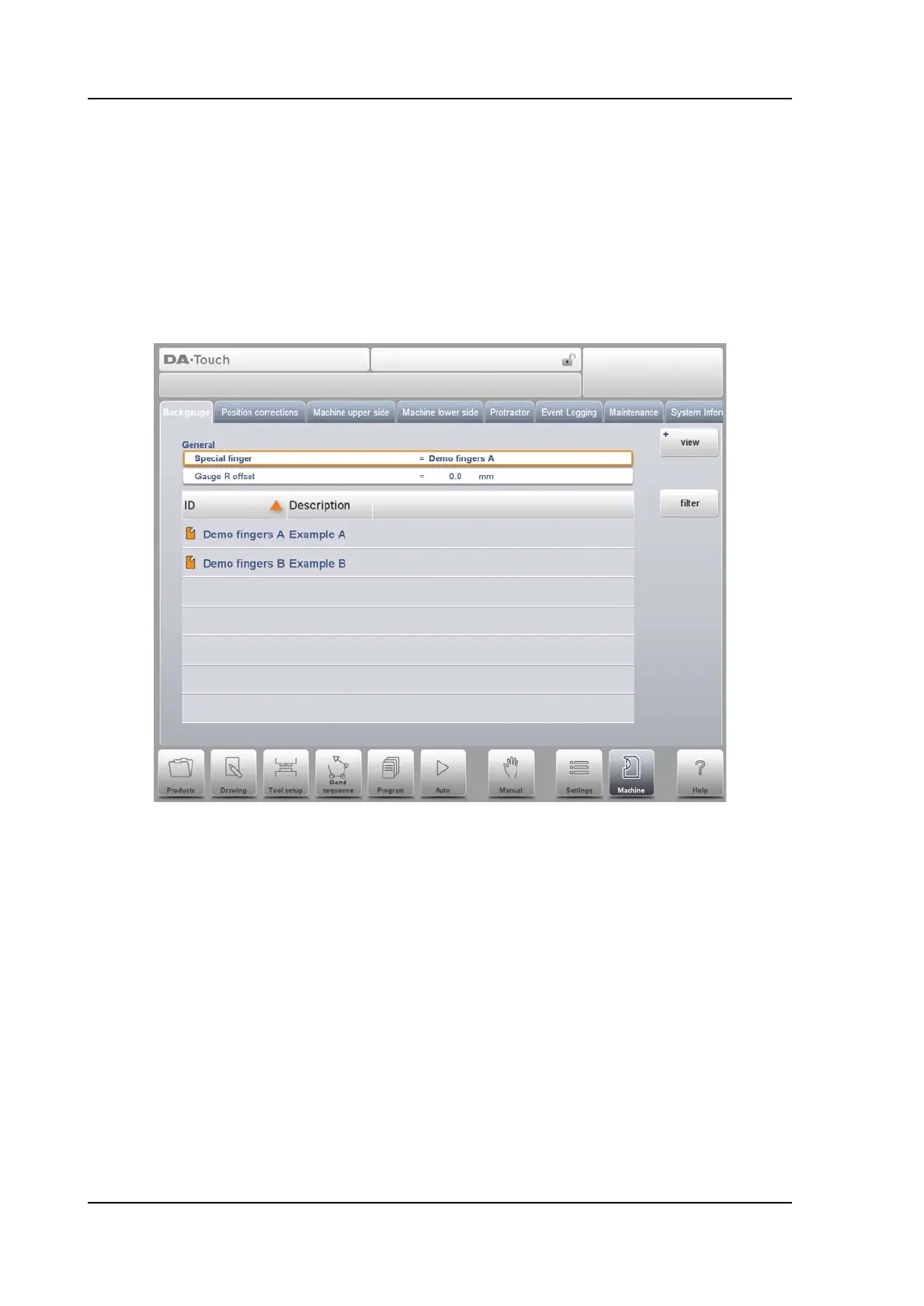

10.6.1. Backgauge finger library
When more than one set of backgauge fingers are programmed, they are shown in a library of
fingers. When special fingers are installed, the database is activated enabling more finger
sets.
Upon choice the user can select the backgauge fingers in the machine. The specific finger
geometries are taken into account for the calculation of finger positions.
When selecting a product one must make sure the appropriate fingers with which the CNC
program has been generated have been selected in the machine.
Special finger
The name (ID) of the selected backgauge fingers set. Tap to modify or select from the
backgauge finger library.
