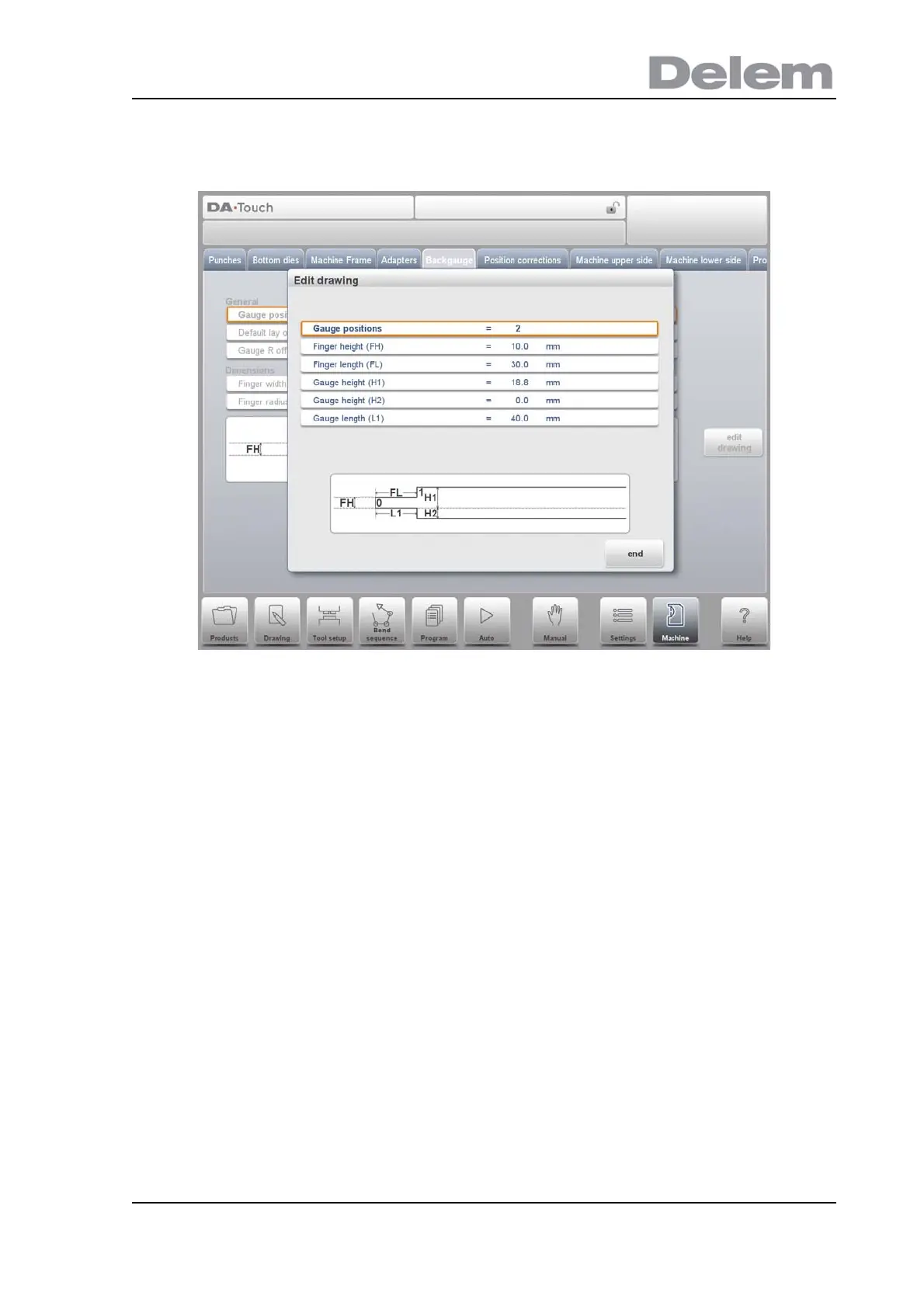

Tap Edit Drawing to make the backgauge drawing appear wherein the dimensions of the
backgauge finger can be programmed.
The following parameters describe the dimensions of the backgauge and the lay-on positions.
The number of parameters that has to be programmed depends on the number of gauge
positions. If more gauge positions are programmed, more parameters are offered. The
illustration at the bottom of the screen will change according to the number of gauge positions.
Finger height
The height (or thickness) of the first backgauge finger tip.
Gauge height
The height of the different finger levels.
Finger length
The length of the first finger level.
Gauge length (L2/L3)
The length of additional lay-on levels.
Gauge length (L1)
The length of the finger level at the bottom of the gauge.
