V1213, 10.37

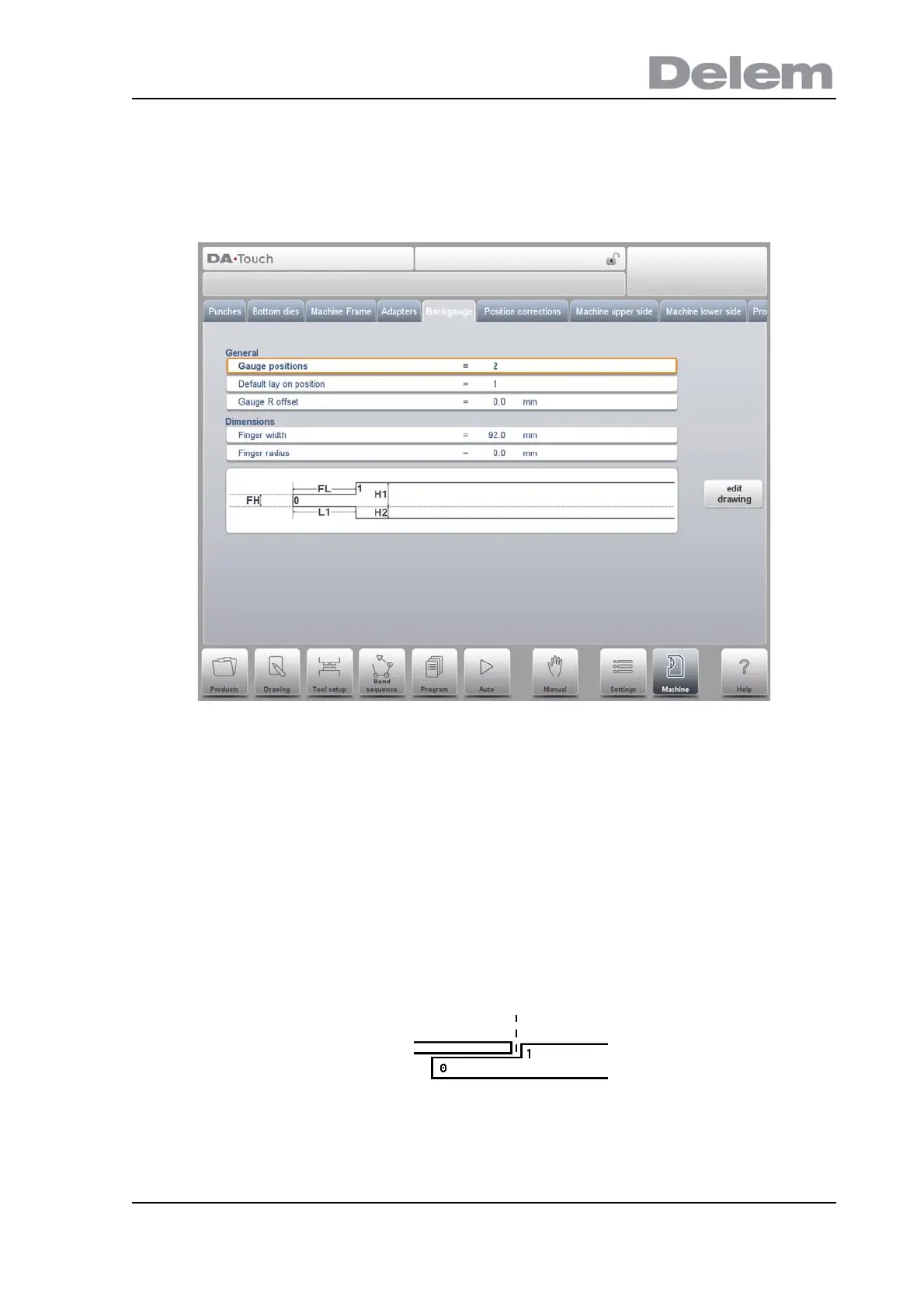

10.6. Backgauge
With these finger dimensions the R-axis movement and related X-axes movement is taken
into account. Also the workpiece / backgauge collision are computed using the dimensions.
Gauge positions
The number of possible gauge positions (max. 4). When this parameter is changed, a
new pop-up window with finger geometry appears. There the finger dimensions can be
programmed.
Default lay on position
This is the default lay-on position in case a lay-on position must be used during
automatic bend sequence computation, e.g. in case the X-axis position is outside its
allowed range or larger than the ’Lay-on backstop limit’; it is not used when selecting a
lay-on level manually.
Meaning of lay-on numbers:
Gauge R offset
An offset value for the R-axis can be set if the backgauge is positioned against the sheet
Lay-on = 1
