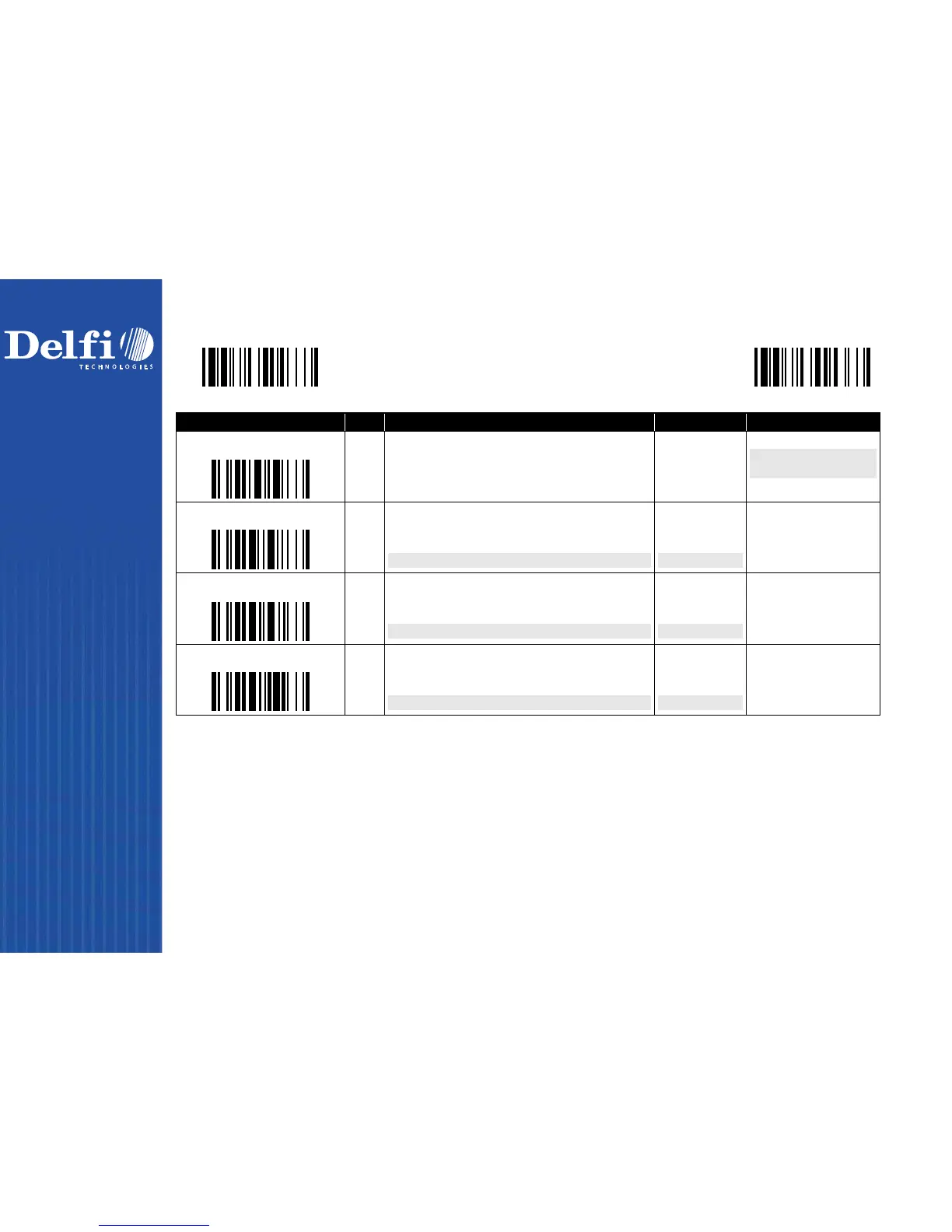

Delfi DelfiScan C51 - Page 48

DelfiScan
Programming Manual
Configure Your DelfiScan
44
PROGRA
M
Condensed DataWizard
Data Replacer Setting
M_DEFA
ULT
Family Code Selection P.C Parameter Selection Option Code 2nd Option Code
Replacer Control
SS
MS
MS
Disable
Select one bar code symbology
Select all bar code symbologies
FIN
(2 digits)
00
automatic termination
automatic termination
1st Replacement
SS
DS
Disable
Enable
2-digits identified position; 1 replacement character
FIN
(2 digits)
position
[00-7F]
2nd Replacement
SS
DS
Disable
Enable
2-digits identified position; 1 replacement character
FIN
(2 digits)
position
[00-7F]
3rd Replacement
SS
DS
Disable
Enable
2-digits identified position; 1 replacement character
FIN
(2 digits)
position
[00-7F]

The
Data Replacer
is used to edit the scanned raw data prior to transmitting the data to the host computers or terminals. It allows you to select
desired bar code symbologies for replacer control, and provides
Multiple Position Replcement
in the identified position.

All data must conform to the
Identified Bar Code Symbologies
, and one to three
Identified Characters
in the identified position While the Data
Replacer is enabled, it arranges only scanned data without
Preamble
,
Postamble
,
STX
,
ETX
,
Data Length
,
Prefix/Suffix Symbology ID
or
Record
Suffix
.

Regarding the “
Bar Code Selection
” and “
Position Calculation
” of Data Replacer, please refer to page 46
for details.

Please note that all “
Character
” input should be referred to the
ASCII/HEX Table
listed in Appendix to find mathced HEX value.
