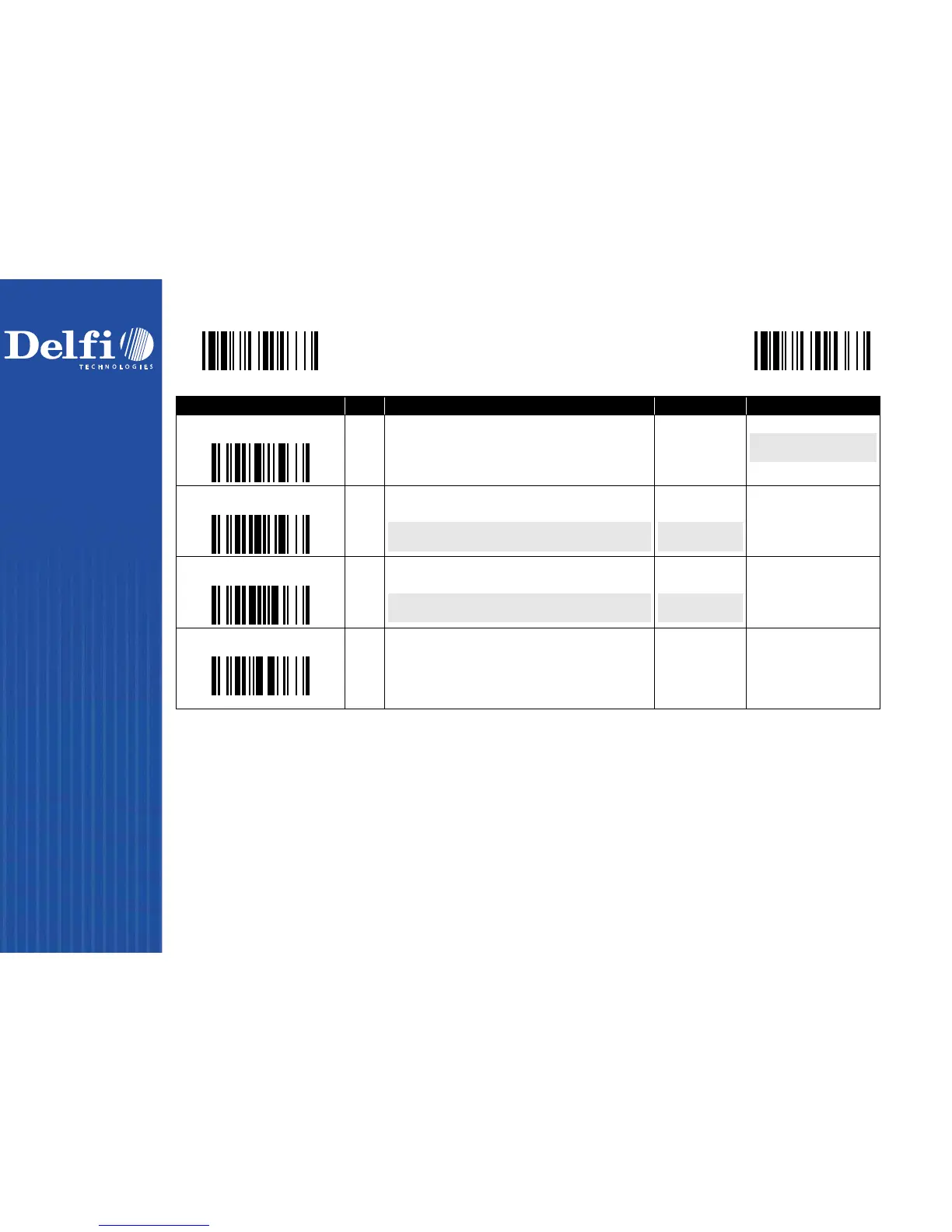

Condensed DataWizard
Data Organizer Setting
M_DEFA
ULT
Family Code Selection P.C Parameter Selection Option Code 2nd Option Code
Organizer Control
SS
MS
MS
Disable
Select one bar code symbology
Select all bar code symbologies
FIN
(2 digits)
00
automatic termination
automatic termination
1st Organization
SS
DS
Disable
Enable
2-digits identified position;
Forward/backward data transmission setting
FIN
(2 digits)
position
direction
0 (Forward)
1 (Backward)
2nd Organization
SS
DS
Disable
Enable
2-digits identified position;
Forward/backward data transmission setting
FIN
(2 digits)
position
direction
0 (Forward)
1 (Backward)
Include/Exclude Control
SS
DS
Transmitted data excluded the data of identified
position
Transmitted data included the data of identified
position
0
1

The
Data Organizer
is used to edit the scanned raw data prior to transmitting the data to the host computers or terminals. It allows you to select
desired bar code symbologies for organizer control, and provides maximum two identified positions to send the data
forward
or
backward
. It also
allows you to control the transmitted data
including
or
excluding
the data of identification position. Please refer to the application example listed in
page 37 for de
tails.

While the Data Organizer is enabled, it arranges only scanned data without
Preamble
,
Postamble
,
STX
,
ETX
,
Data Length
,
Prefix/Suffix Symbology
ID
or
Record Suffix
.

Regarding the “
Bar Code Selection
” and “
Position Calculation
” of Data Organizer, please refer to page 46 for details.

Please note that all “
Character
” input should be referred to the
ASCII/HEX Table
.
