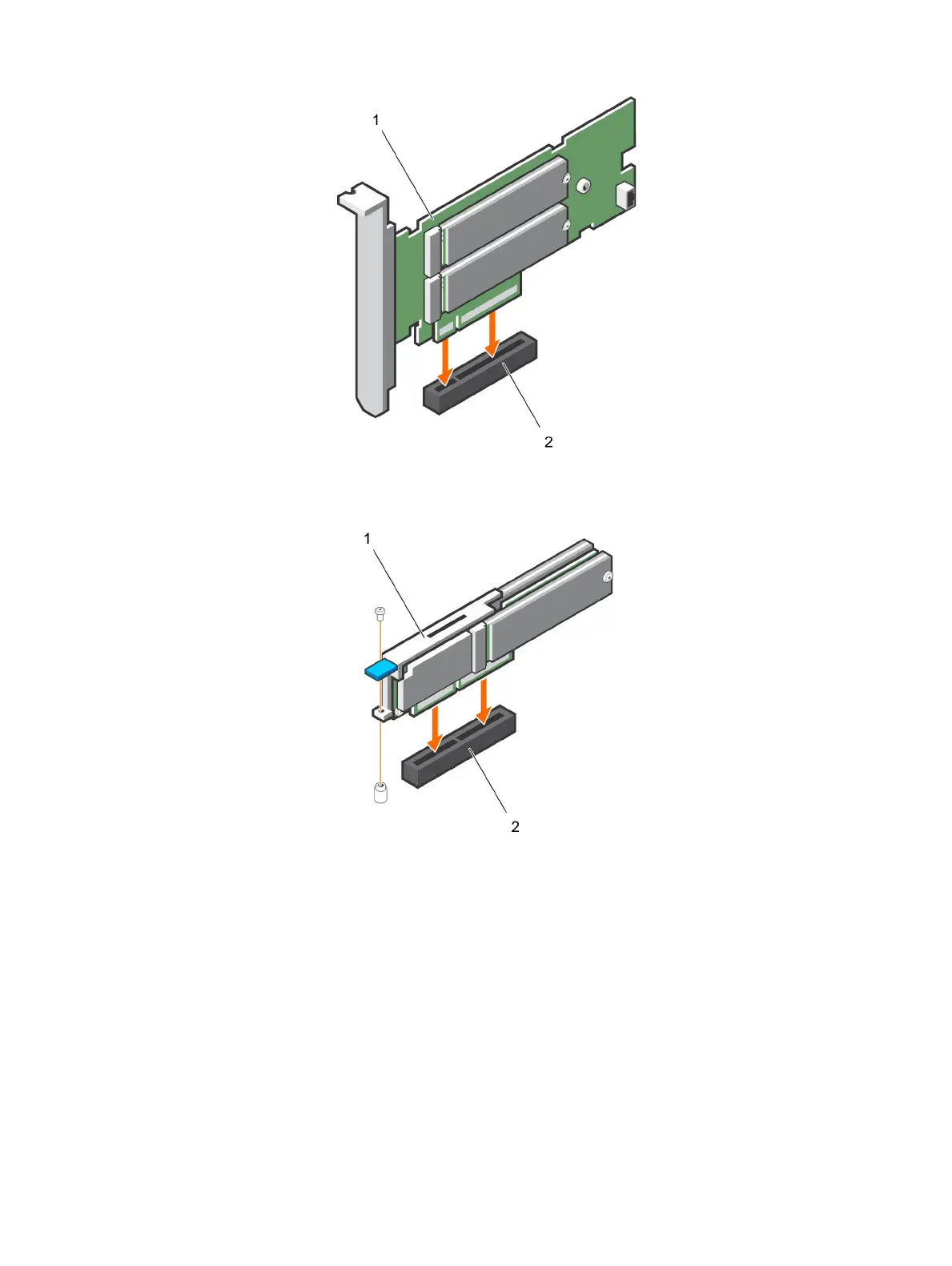

Figure 9. Installing the BOSS-S1 adapter card
1 BOSS-S1 card 2 card connector on the system board
Figure 10. Installing the BOSS-S1 modular card
1
modular card 2 card connector on the system board
Deploying the BOSS-S1 card 19
