Dell EMC ECS D Series - D-Series Single-Phase AC Power Cabling for Eight-Node Configurations

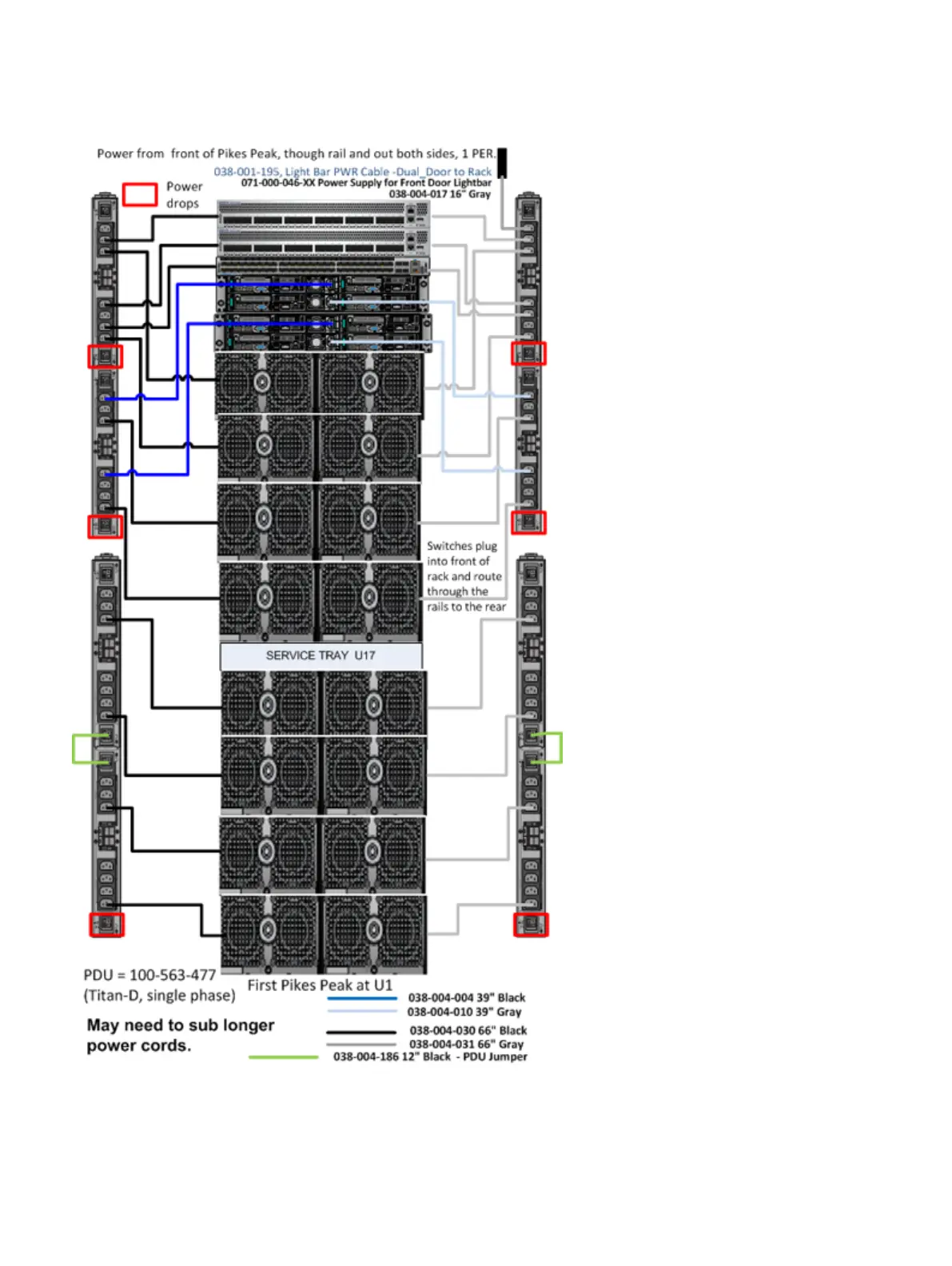

Figure 45 D-Series single-phase AC power cabling for eight-node configurations
Power Cabling
78 D- and U-Series Hardware Guide
