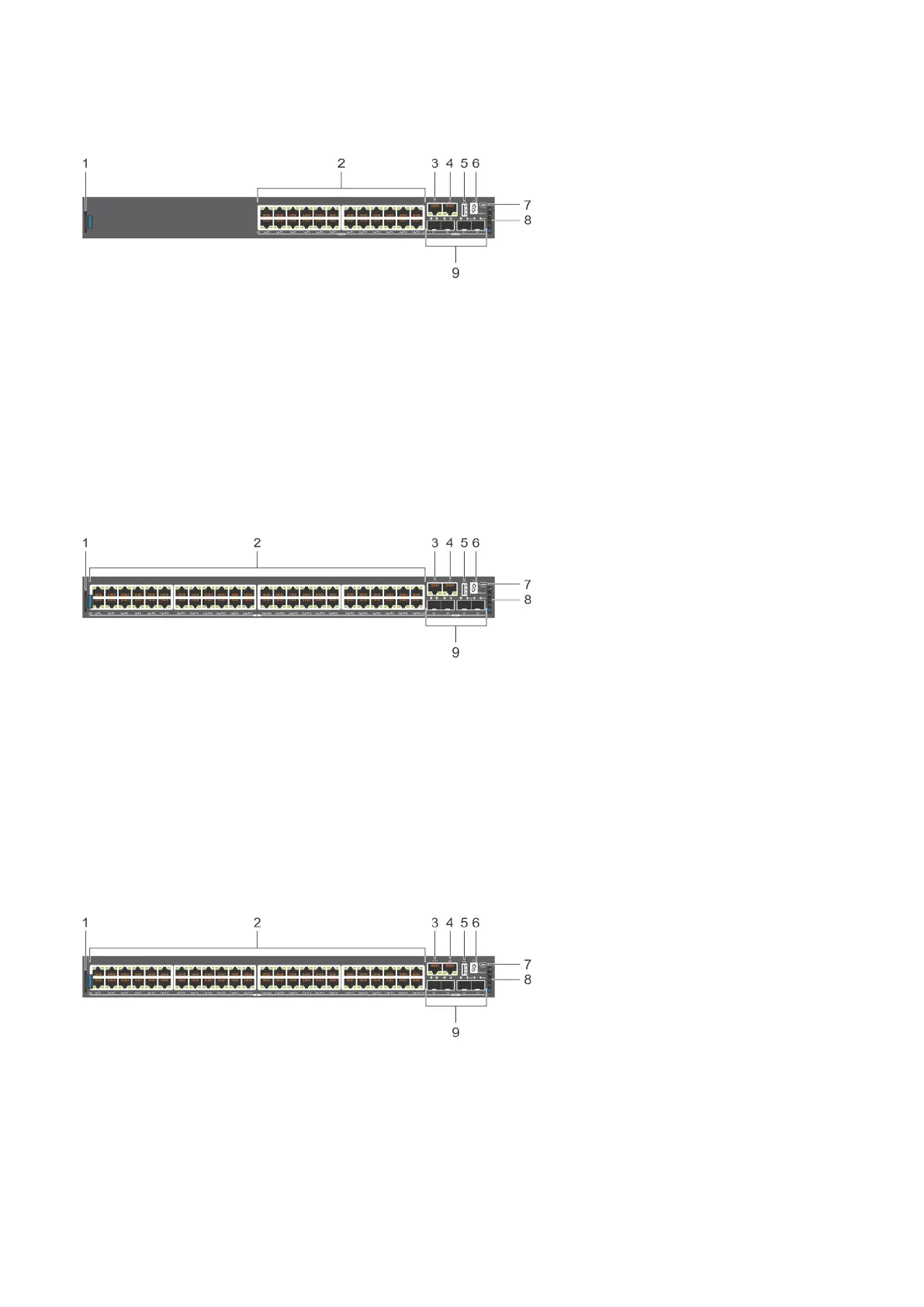

Dell EMC PowerSwitch N3224F-ON User Manual

1. Luggage tag 2. 10GBASE-T RJ45 with 802.3bt Type-4 (90W) PoE
3. RJ45 serial management port 4. RJ45 Ethernet console port
5. USB Type-A port 6. Stack ID
7. MicroUSB Type-B port 8. Status LEDs
9. 10G SFP28 ports
N3248TE-ON I/O-side view
1. Luggage tag 2. 1GBASE-T RJ45
3. RJ45 serial management port 4. RJ45 Ethernet console port
5. USB Type-A port 6. Stack ID
7. MicroUSB Type-B port 8. Status LEDs
9. 10G SFP28 ports
N3248P-ON I/O-side view
1.
Luggage tag 2. 1GBASE-T RJ45 with 802.3at Type-2 (30W) PoE
3. RJ45 serial management port 4. RJ45 Ethernet console port
5. USB Type-A port 6. Stack ID
7. MicroUSB Type-B port 8. Status LEDs
9. 10G SFP+ ports
N3200-ON Series switch 11

Dell EMC PowerSwitch N3224F-ON Specifications

General

Brand	Dell EMC
Model	PowerSwitch N3224F-ON
Category	Switch
Language	English
