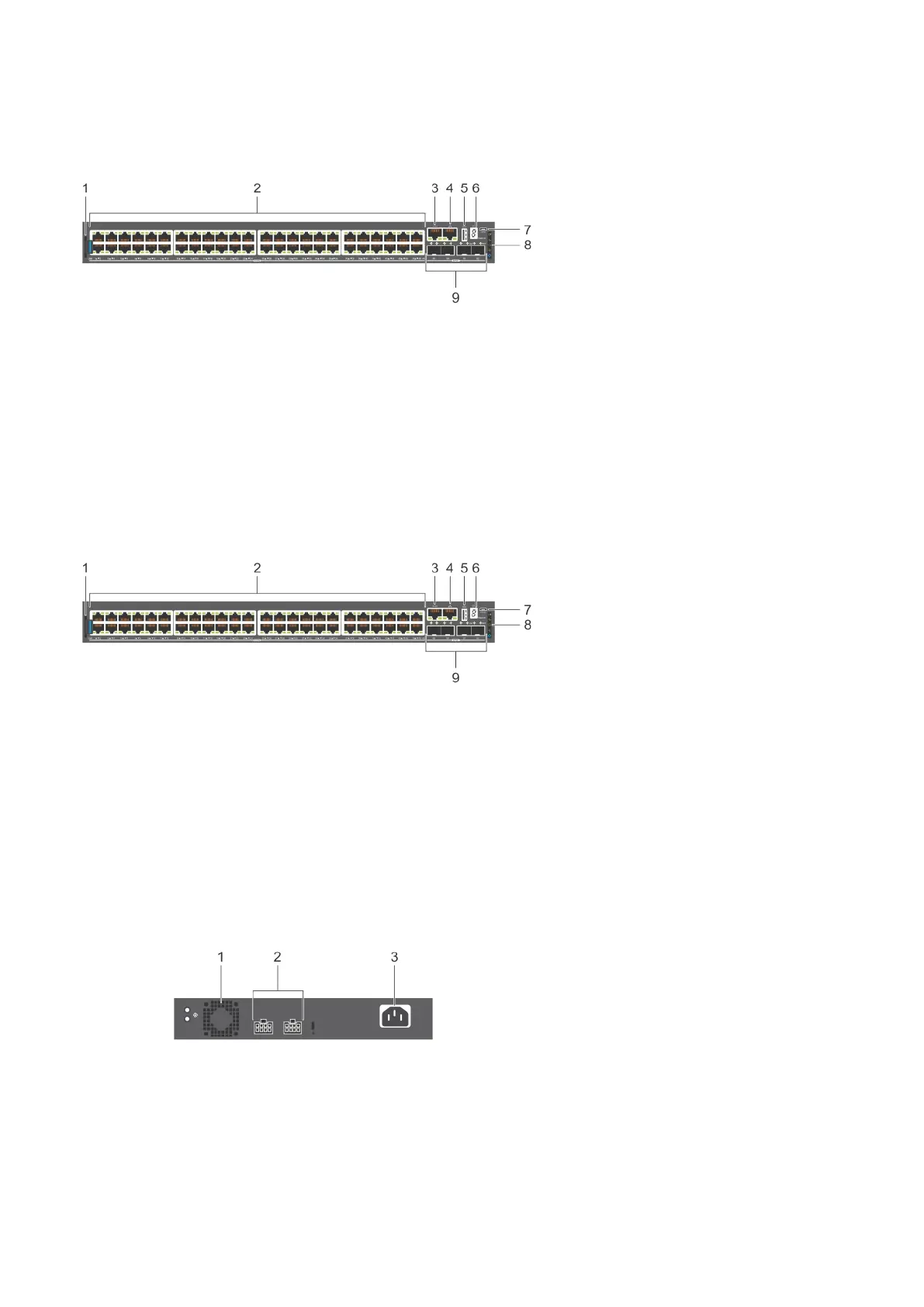

N3248X-ON I/O-side view
1. Luggage tag 2. 10GBASE-T RJ45
3. RJ45 serial management port 4. RJ45 Ethernet console port
5. USB Type-A port 6. Stack ID
7. MicroUSB Type-B port 8. Status LEDs
9. 10G SFP28 ports
N3248PXE-ON I/O-side view
1. Luggage tag 2. 10GBASE-T RJ45 with 802.3bt Type-4 (90W) PoE
3. RJ45 serial management port 4. RJ45 Ethernet console port
5. USB Type-A port 6. Stack ID
7. MicroUSB Type-B port 8. Status LEDs
9. 10G SFP28 ports
N3200-ON Series PSU-side views:
N3208PX-ON PSU-side view
1. Fan
2. External power adapter connection
3. AC power connection
N3224F-ON, N3224P-ON, N3224T-ON, N3248TE-ON, and N3248X-ON PSU-side view
12
N3200-ON Series switch
