About this task
Steps

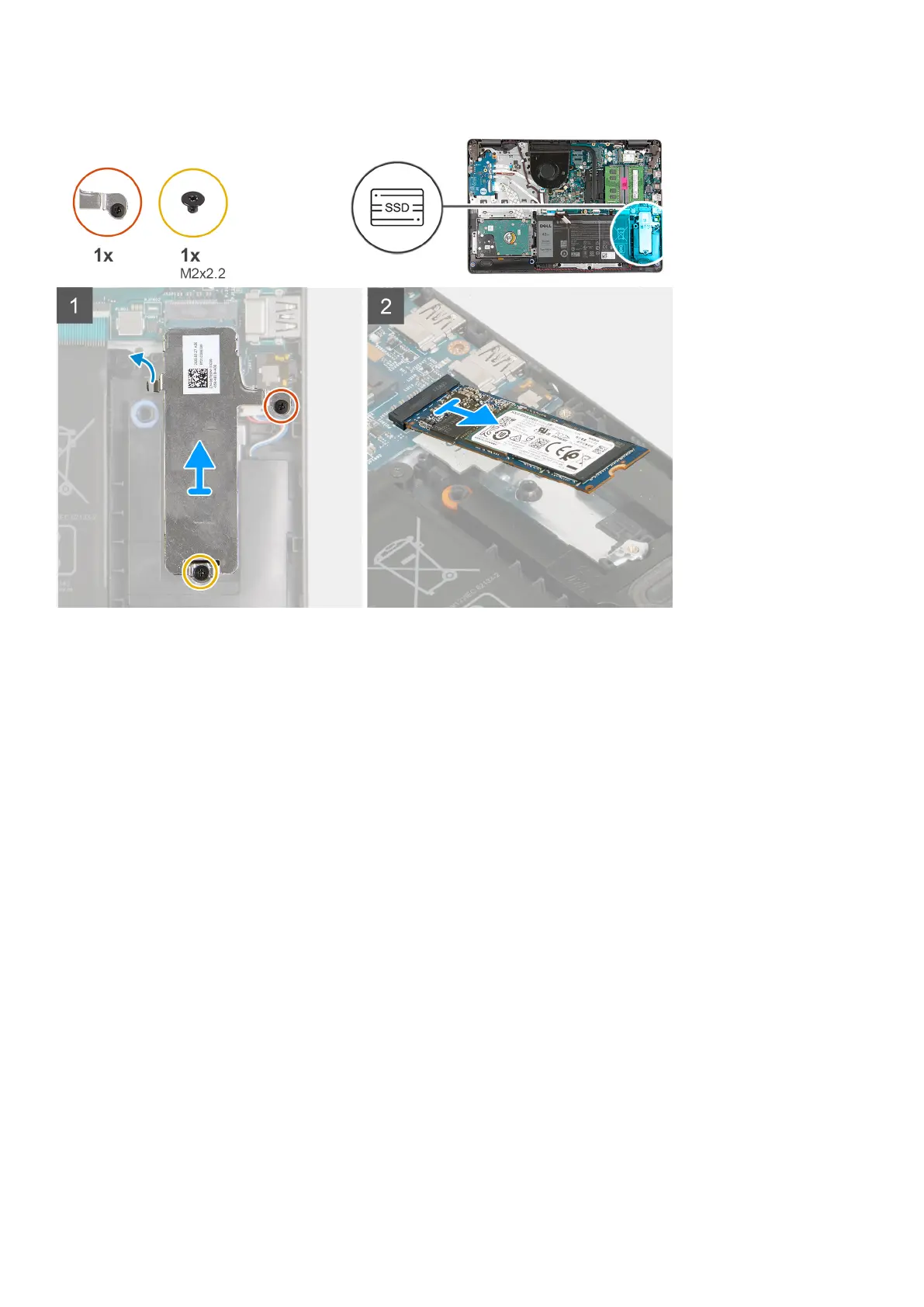

1. Remove the single (M2x2.2) screw and the single captive screw from the thermal bracket and lift the bracket out of the
system.
2. Lift the solid-state drive from the M.2 slot on the system board and remove it from the system.
Installing the M.2 2280 Solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
34
Disassembly and reassembly
