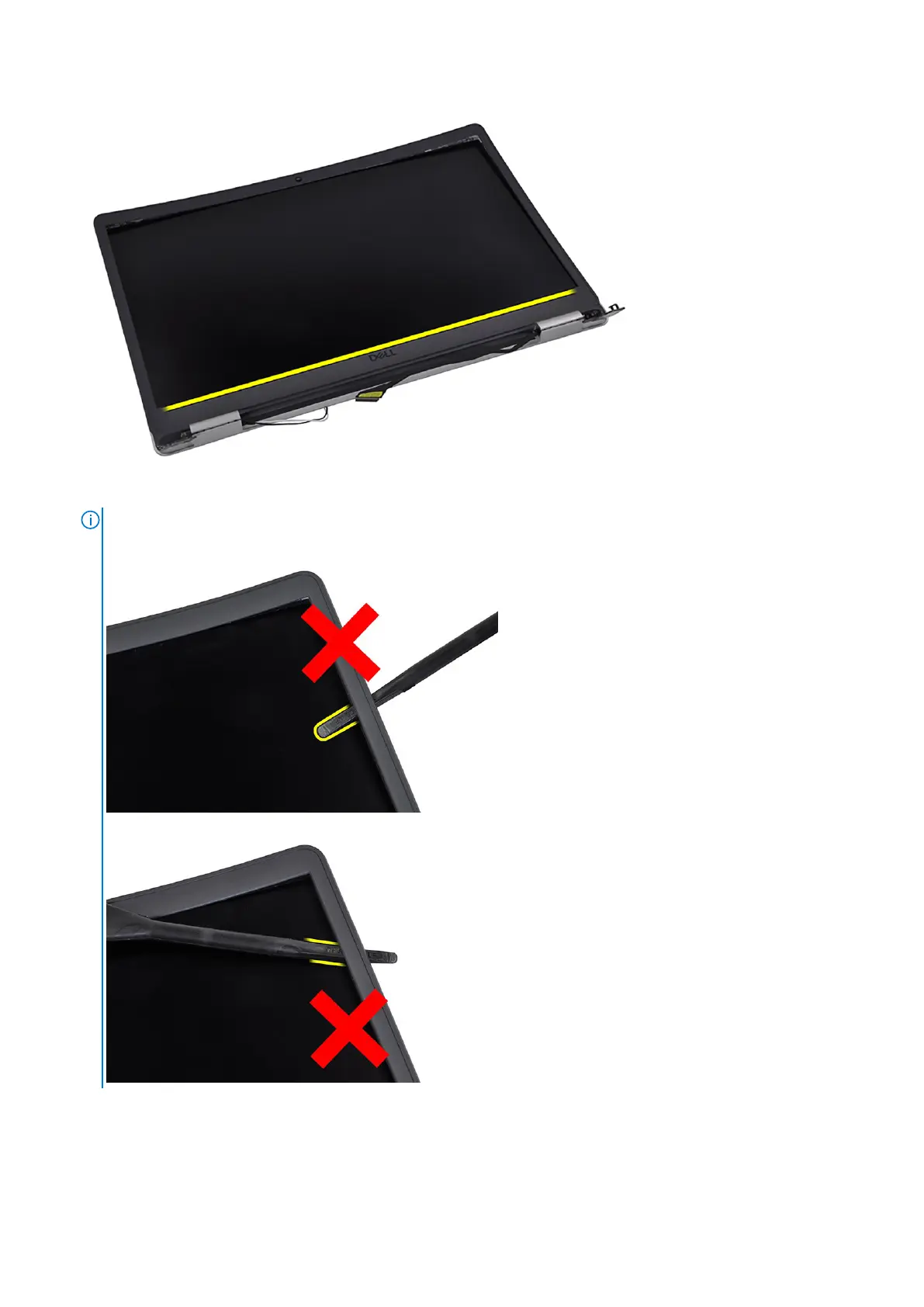

5. Lift and remove the display bezel from the display assembly
NOTE: CAUTION: DO NOT use a scribe or any other objects to pry up the display bezel in the manners shown in the
images below as the pressure applied on the display panel by the scribe will damage the display panel.
Disassembly and reassembly 57
