25
Installation
|

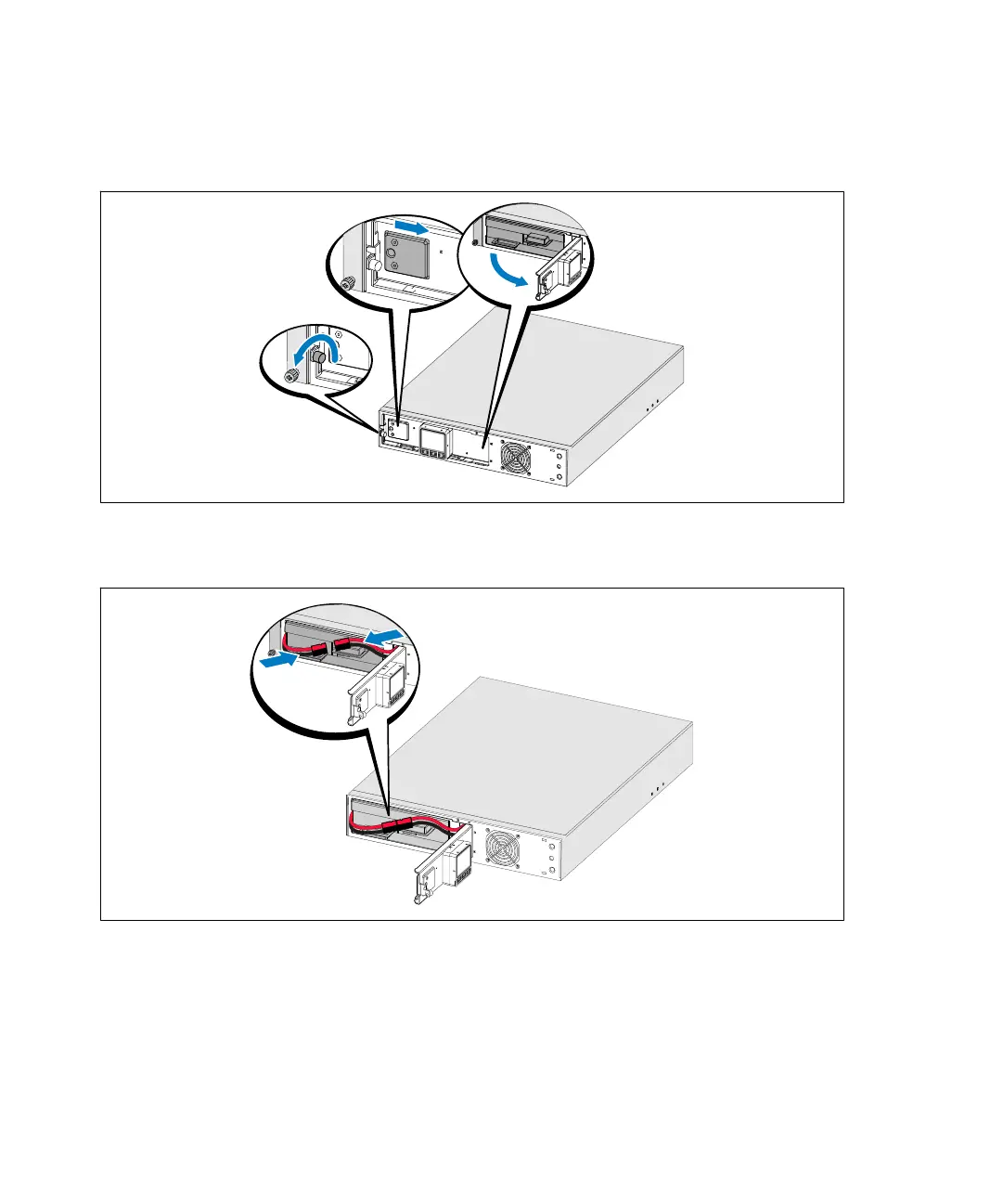

2 Loosen the thumbscrew on the metal battery cover, slide the cover to the right, and open (see
Figure 20).
Figure 20. Opening the Metal Battery Cover
3 Connect the internal battery connector.
Figure 21. Connecting the Internal Battery Connector
