9/20/12

Documentation

8/10

support.dell.com/support/edocs/monitors/2007FP/en/ug/about.htm#Front View

12 Floating

13 Floating

14 +5V / +3.3V power

15 Self test

16 Hot Plug Detect

17 TMDS RX0-

18 TMDS RX0+

19 TMDS Ground

20 Floating

21 Floating

22 TMDS Ground

23 TMDS Clock+

24 TMDS Clock-

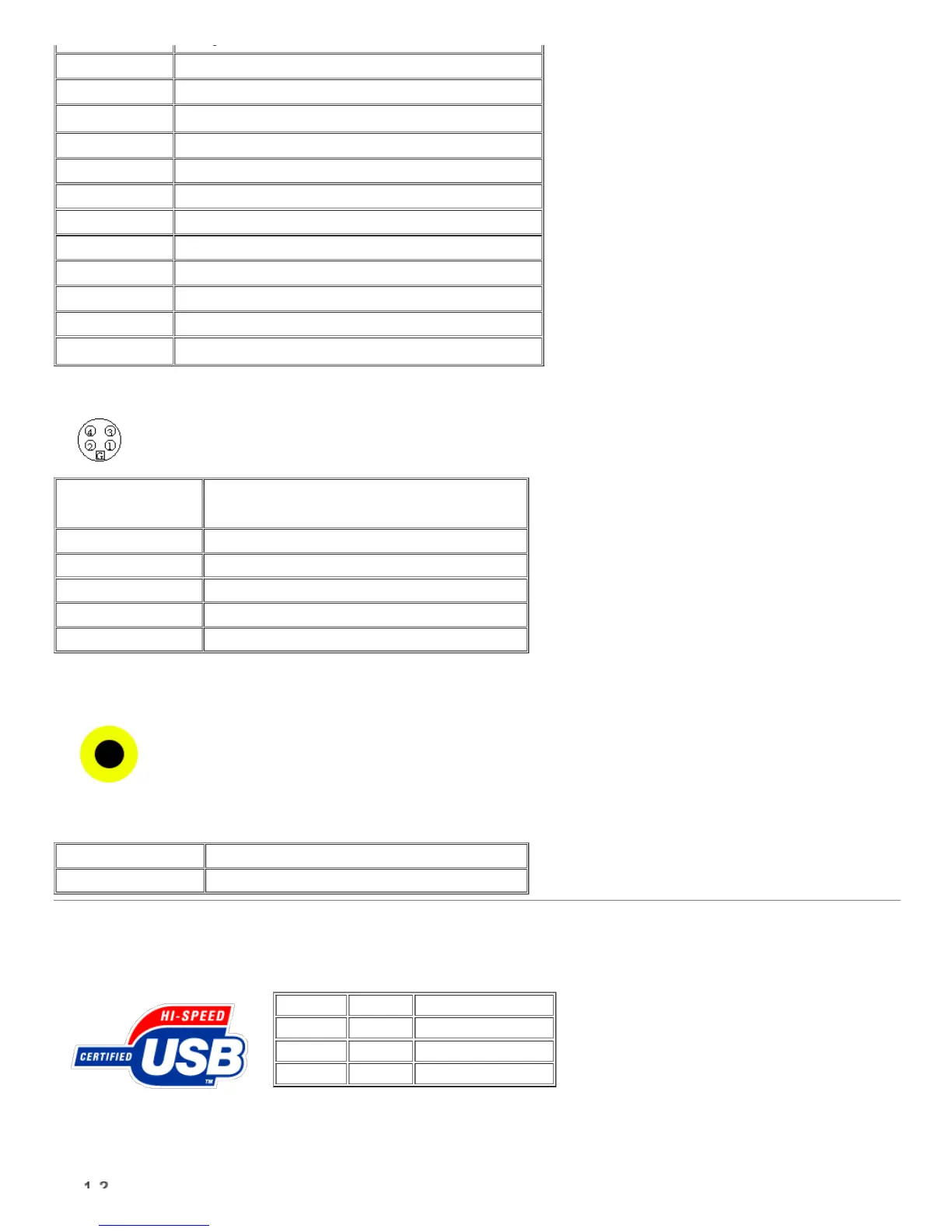

S-video Connector

Pin Number 5-pin Side of the Connected Signal Cable (Cable not included)

1 GND

2 GND

3 LUMA

4 CHROMA

5 GND

Composite Video Connector

Pin Number 1-pin Side of the Connected Signal Cable (cable not included)

1 LUMA COMPOSITE CHROMA

Universal Serial Bus (USB) Interface

This monitor supports High-Speed Certified USB 2.0 interface.

Data Rate Power Consumption

High speed 480 Mbps 2.5W (Max., each port)

Full speed 12 Mbps 2.5W (Max., each port)

Low speed 1.5 Mbps 2.5W (Max., each port)

USB Upstream Connector
