9/20/12
Documentation
2/10
support.dell.com/support/edocs/monitors/2007FP/en/ug/about.htm#Front View

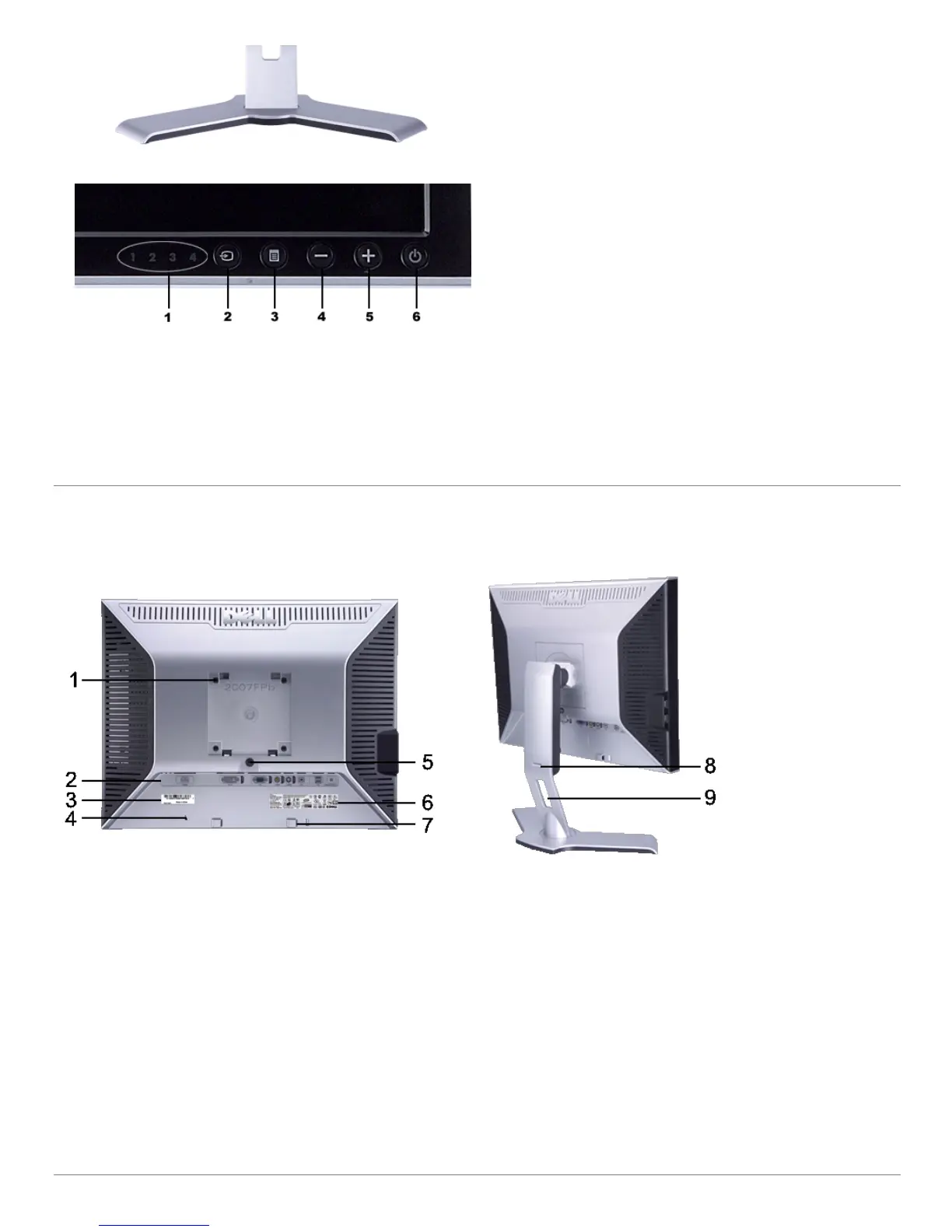

1 Input indicators
2 Input Source Select
3 OSD Menu / Select
4 Down (-)
5 Up (+)
6 Power button (with power light indicator)
Back View
1
VESA mounting holes (100mm)
(Behind attached base plate)
Use to mount the monitor.
2 Connectors label Indicate the positions and types of connectors.
3 Barcode serial number label
Refer to this label if you need to contact Dell for
technical support.
4 Security lock slot
Use a security lock with the slot to help secure your
monitor.
5 Monitor Lock/Release Button Press to release the stand from the monitor.
6 Regulatory rating label List the regulatory approvals.
7 Dell Soundbar mounting brackets Attach the optional Dell Soundbar.
8
Lock down/release button
Push the monitor down, press the button to unlock
the monitor, and then lift the monitor to the desired
height.
9 Cable management hole
Help organize cables by placing them through the
hole.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dell 2007FP and is the answer not in the manual?

Dell 2007FP Specifications

General IconGeneral
Screen Size20.1 inches
Resolution1600 x 1200
Aspect Ratio4:3
Panel TypeIPS
Brightness300 cd/m²
Contrast Ratio800:1
Response Time16 ms
USB Ports4 x USB 2.0
Color Support16.7 million colors
VESA Mount100 x 100 mm
Viewing Angles178° horizontal / 178° vertical
InputsDVI-D, VGA
Weight17 lbs
