9/20/12

Documentation

7/10

support.dell.com/support/edocs/monitors/2007FP/en/ug/about.htm#Front View

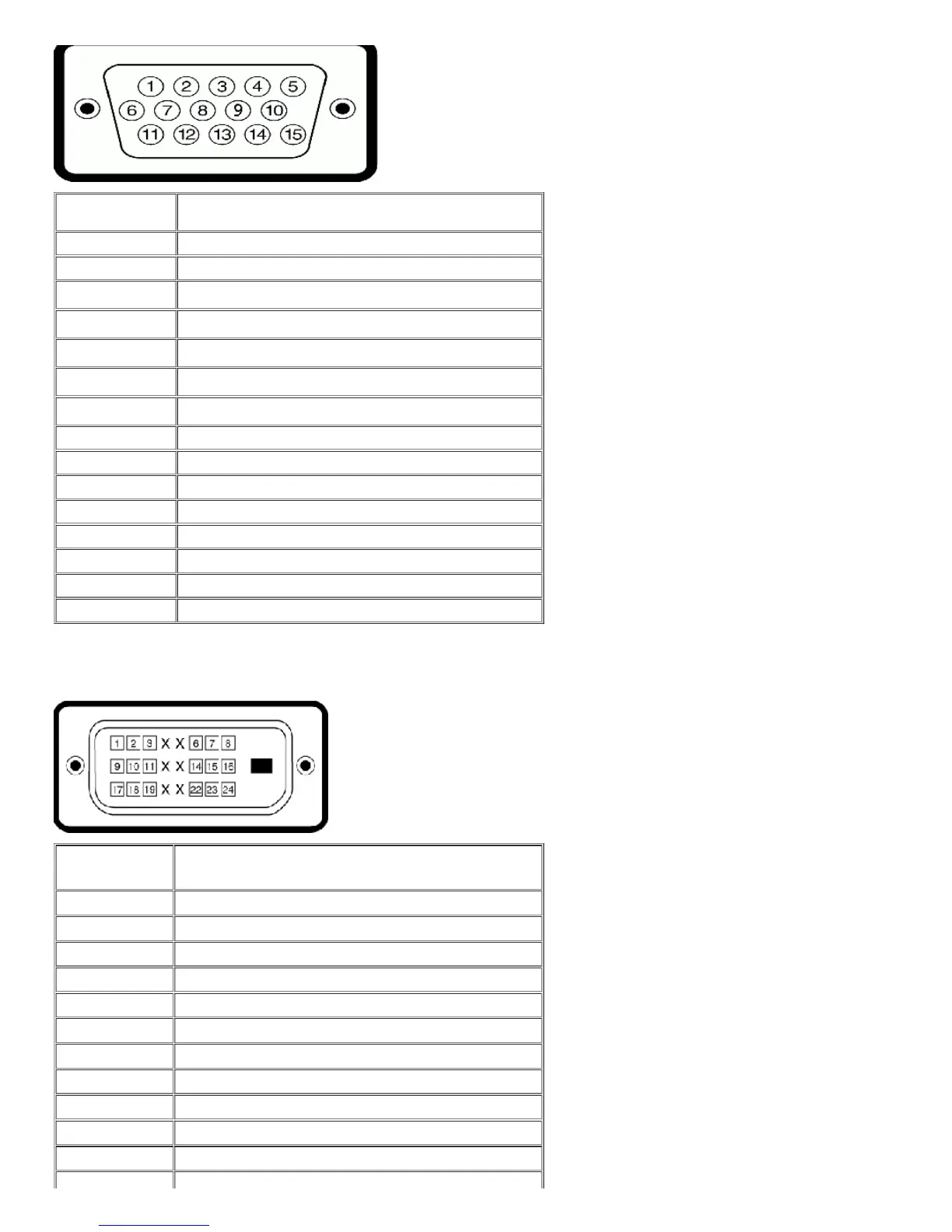

Pin Number 15-pin Side of the Connected Signal Cable

1 Video-Red

2 Video-Green

3 Video-Blue

4 GND

5 Self-test

6 GND-R

7 GND-G

8 GND-B

9 Computer 5V/3.3V

10 GND-sync

11 GND

12 DDC data

13 H-sync

14 V-sync

15 DDC clock

DVI Connector

Pin Number 24-pin Side of the Connected Signal Cable

1 TMDS RX2-

2 TMDS RX2+

3 TMDS Ground

4 Floating

5 Floating

6 DDC Clock

7 DDC Data

8 Floating

9 TMDS RX1-

10 TMDS RX1+

11 TMDS Ground

12 Floating
