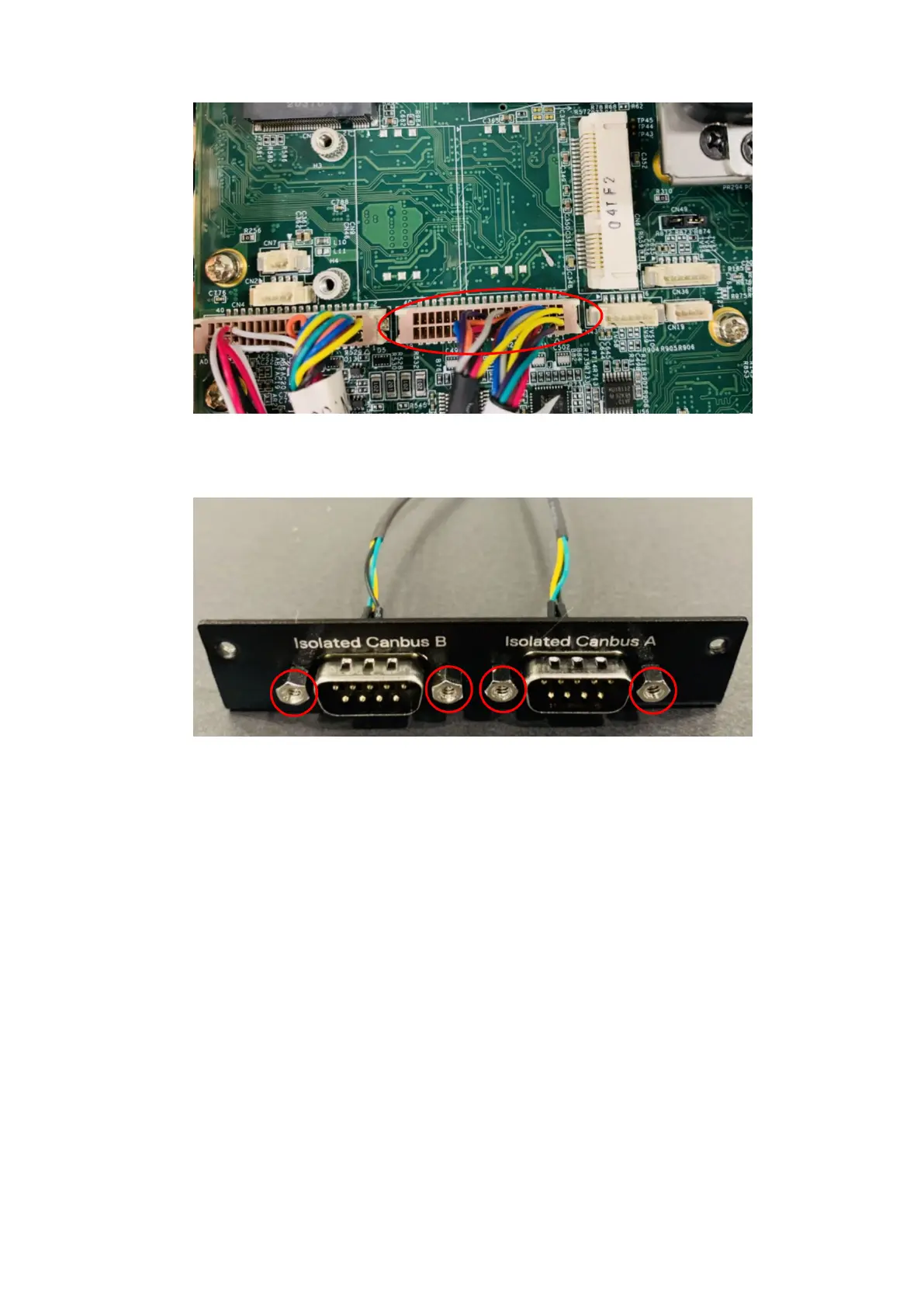

Figure 117. Connect dual-port COM cable to motherboard header
9. Use four H4 standoffs to secure the Canbus ports to the Canbus I/O panel, as shown in the following figure.
Figure 118. Canbus ports installed on Canbus I/O panel
10. Secure the Canbus I/O panel to the front I/O panel. Use the two screws to the sides of the Canbus I/O panel and the two
screws on the bottom edge of the chassis, as shown in the following figure.
Installation procedure for 2x Canbus uFM module
