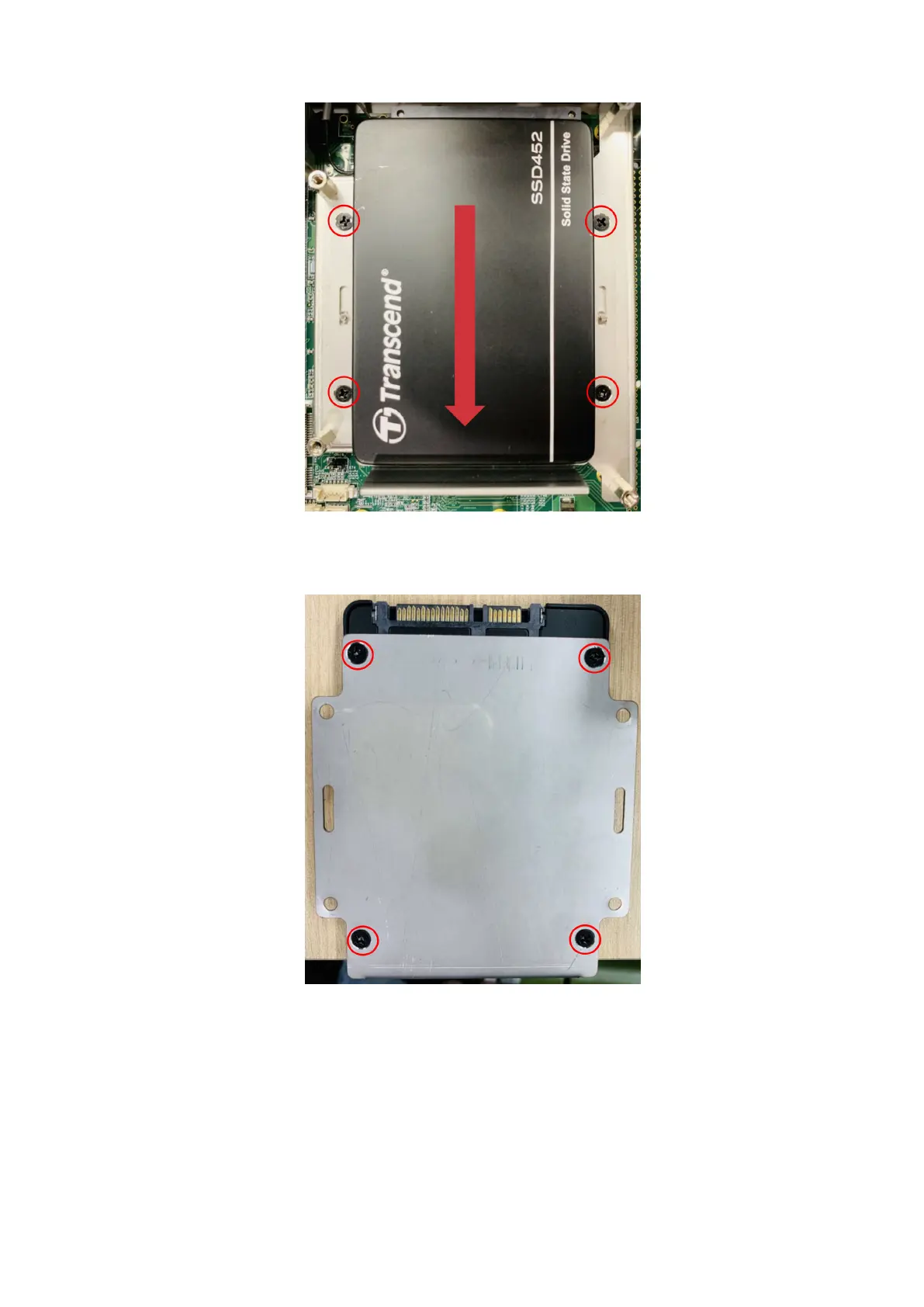

Figure 4. Lower SSD bracket
5. Remove the four screws that mount the default SSD to the lower SSD bracket.
Figure 5. Default SSD mounting screws
6. Reattach the bottom panel. See the screw locations in step 1.
Reinstall SSD
About this task
Once the unit is returned following service or replacement, perform the following steps to reinstall the SSD drive or drives.
Keep your hard drive
7
