Installing Blade Components 155

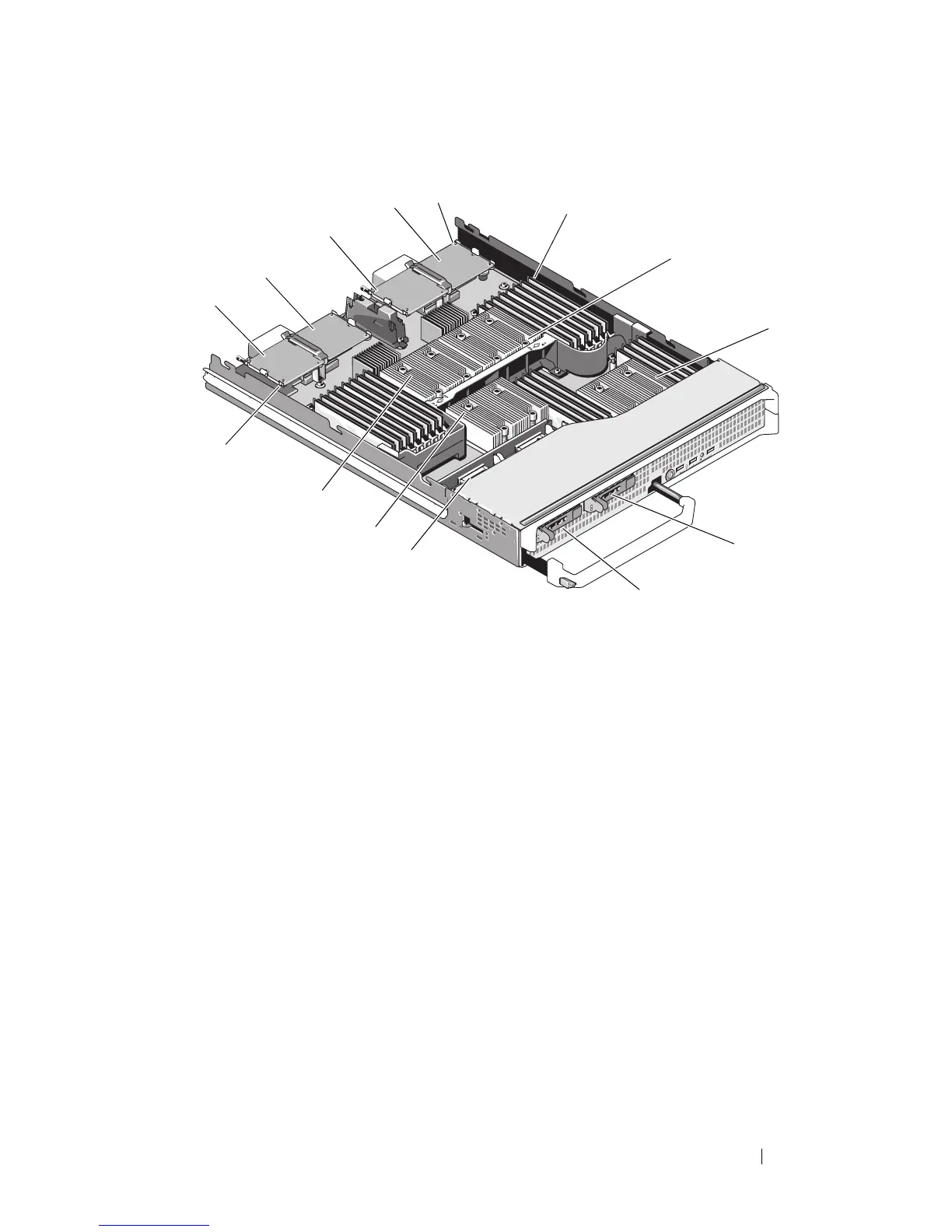

Figure 3-8. Inside a Full-Height Blade (PowerEdge M905 Shown)
1 optional mezzanine card 1 -
Fabric C
2 optional mezzanine card 2 -
Fabric B
3 optional mezzanine card 3 -
Fabric C
4 optional mezzanine card 4 -
Fabric B
5 SD card location 6 memory modules
7 processor CPU2 and heat sink 8 processor CPU4 and heat sink
9 hard drive 1 10 hard drive 0
11 hard-drive backplane 12 processor CPU3 and heat sink
13 processor CPU1 and heat sink 14 video riser card
5
6
1
8
9
10
13
7
2
3
4
11
12
14
