282 Installing Enclosure Components

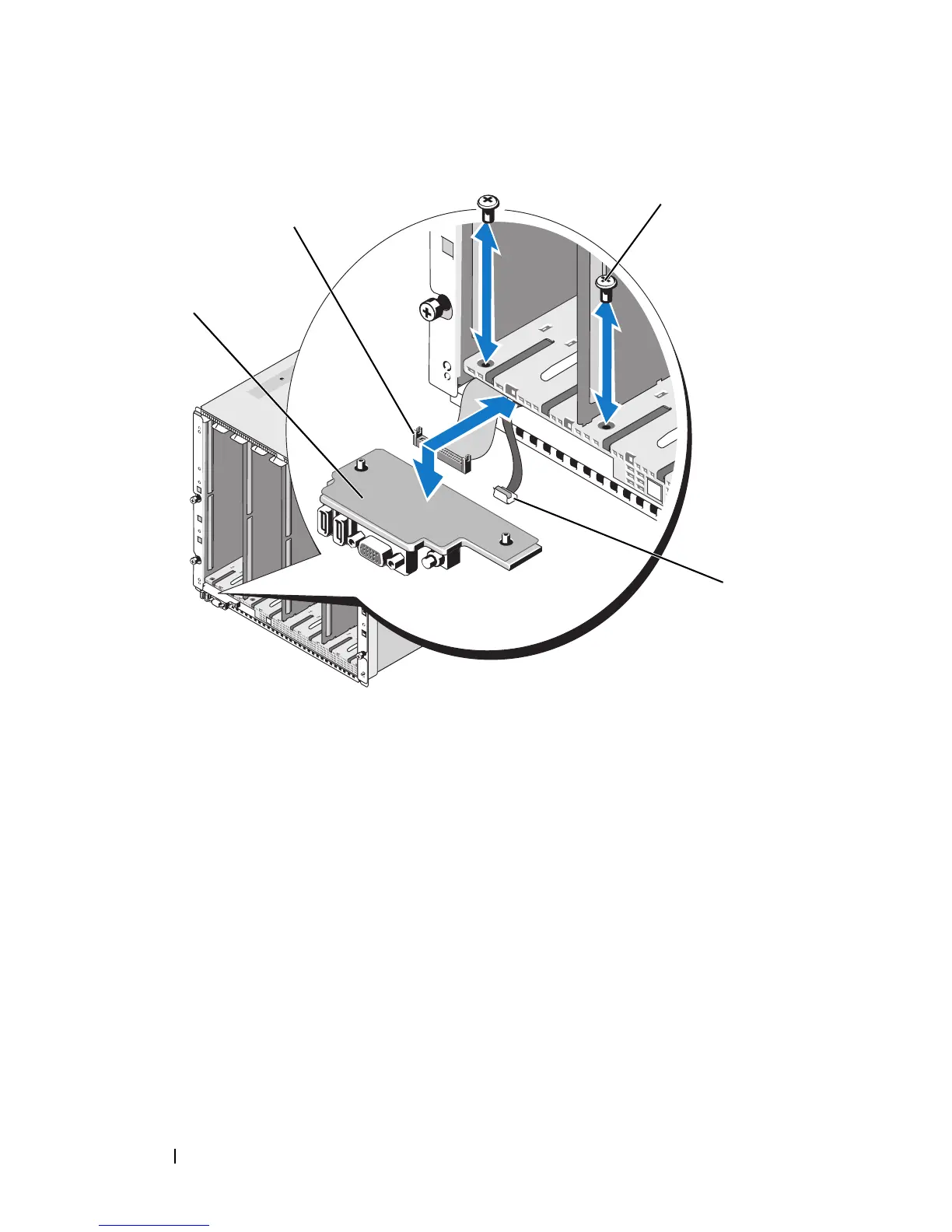

Figure 4-10. Removing and Installing the Control Panel
5
Press the catch at each end of the control-panel cable connector, and
remove the control-panel cable from the underside of the control panel.
6
Use the pull-tab to disconnect the LCD panel cable from the underside of
the control panel.
1 control panel 2 control-panel cable
3 screws (2) 4 LCD panel cable
