Dell Alienware 17 R5 - Page 25

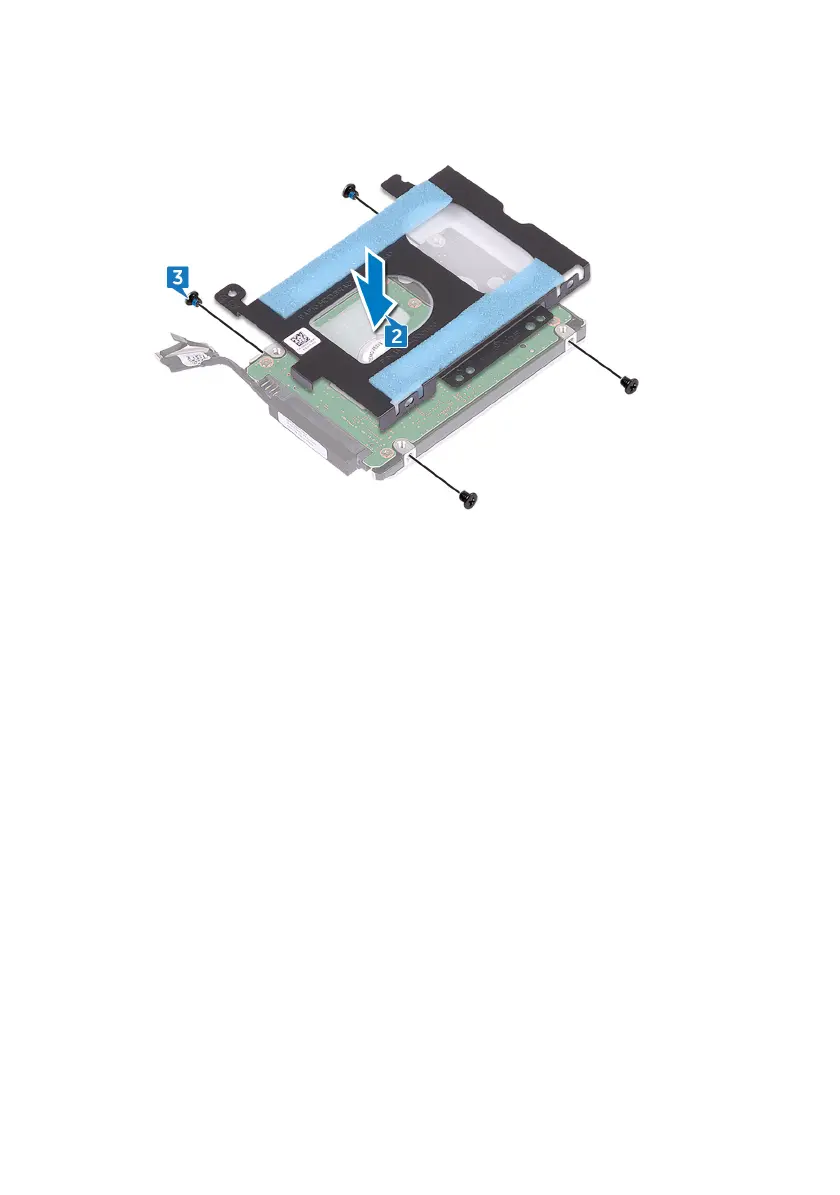

3 Replace the four screws (M3x3) that secure the hard-drive bracket to the
hard-drive assembly.
4 Align the screw holes on the hard-drive assembly with the screw holes on the
computer base.
5 Replace the four screws (M2.5x5) that secure the hard-drive assembly to the
computer base.
6 Route the hard-drive cable through the routing guides on the computer base.
25
