Dell Alienware 17 R5 - Screw List

Screw list
Table 1. Screw list

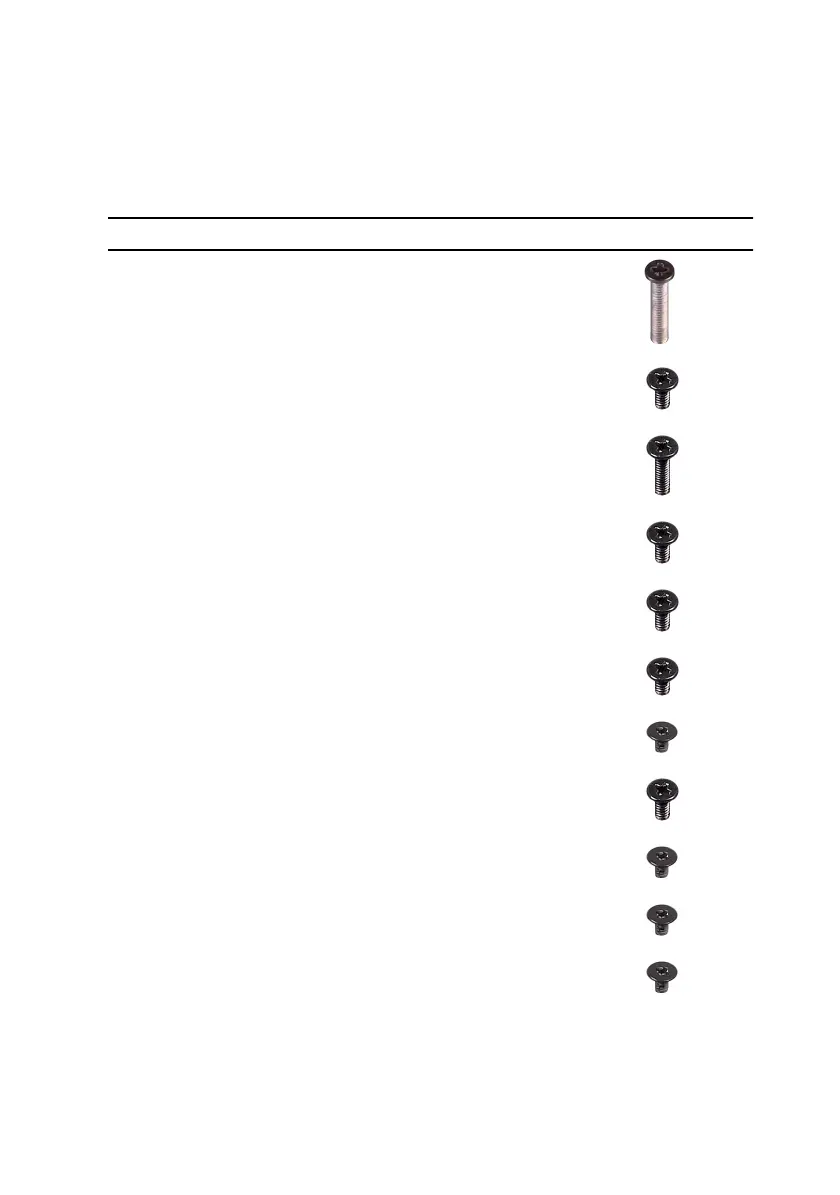

Component Secured to Screw type Quantity Screw image
Base cover Palm-rest
assembly
M2.5x13 6
Battery Palm-rest
assembly
M2.5x5 4
Computer base Palm-rest
assembly
M2.5x8 14
Display
assembly
Palm-rest
assembly
M2.5x5 6
Hard-drive
assembly
Computer base M2.5x5 4
Hard-drive
bracket
Hard-drive
assembly
M3x3 4
Heat-sink
assembly
System board M2x3 7
I/O board Palm-rest
assembly
M2.5x5 2
Keyboard
bracket
Palm-rest
assembly
M2x3 17
Power-adapter
port bracket
Palm-rest
assembly
M2x3 1
Power-button
board
Palm-rest
assembly
M2x3 2
12
