Procedure

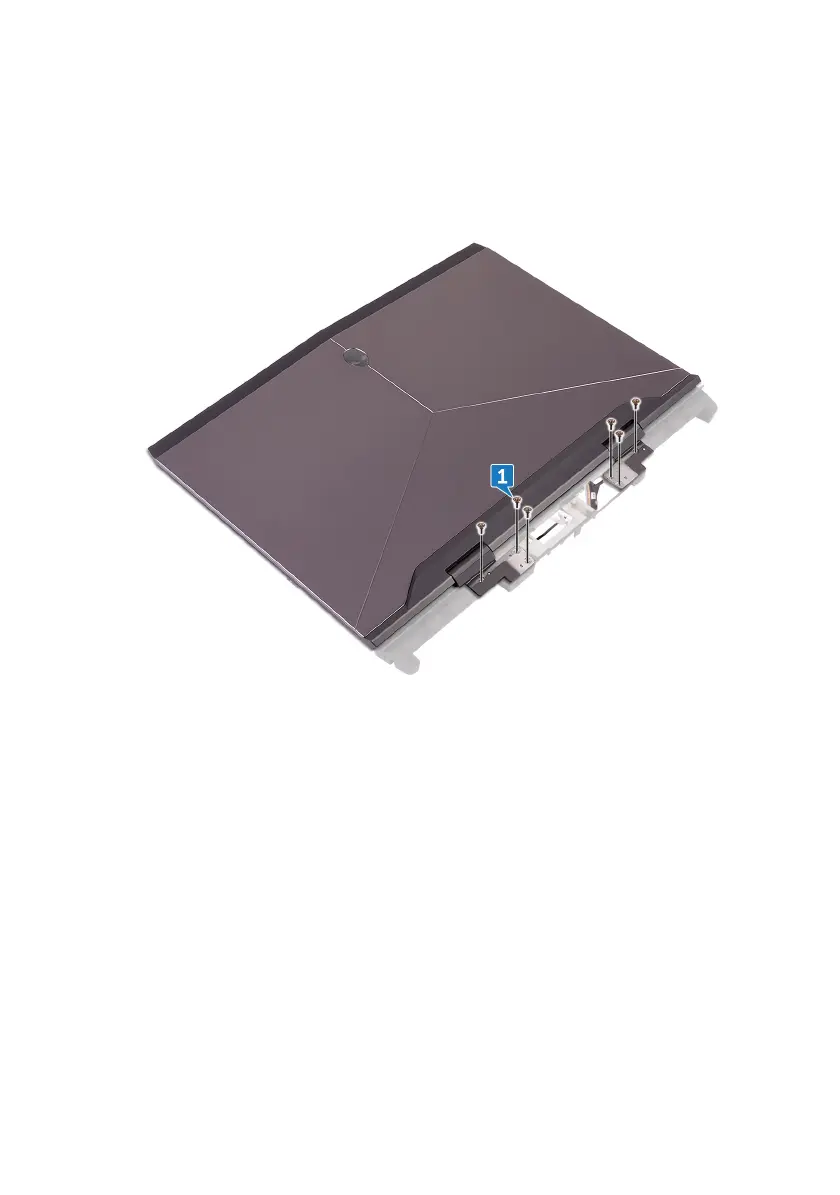

1 Remove the six screws (M2.5x5) that secure the display assembly to the palm-
rest assembly.
2 Turn the computer over.
3 Peel the tape to remove the antenna cables from the palm-rest assembly.
4 Remove the logo board cable from the routing guides on the palm-rest
assembly.
93
