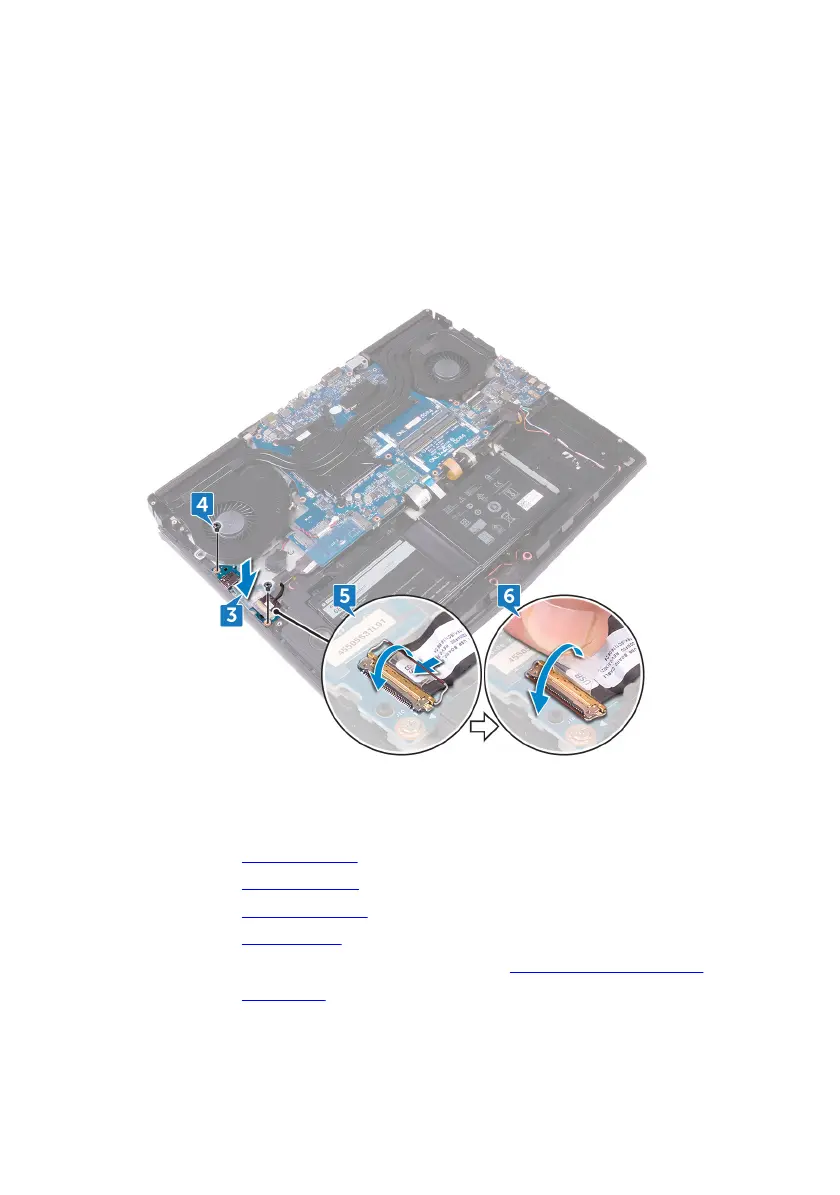

3 Using the alignment posts, place the I/O board on the palm-rest assembly
and align the screw holes on the I/O board with the screw holes on the palm-
rest assembly.
4 Replace the two screws (M2.5x5) that secure the I/O board to the palm-rest
assembly.
5 Slide the I/O-board cable into the connector on the I/O board and close the
latch to secure the cable.
6 Adhere the tape that secures the I/O-board cable to the I/O board.
Post-requisites
1 Replace the computer base.
2 Replace the rear-I/O cover.
3 Replace the solid-state drive.
4 Replace the wireless card.
5 Follow the procedure from step 4 to step 7 in “Replacing the hard drive”.
6 Replace the base cover.
