Dell Alienware 17 R5 - Page 70

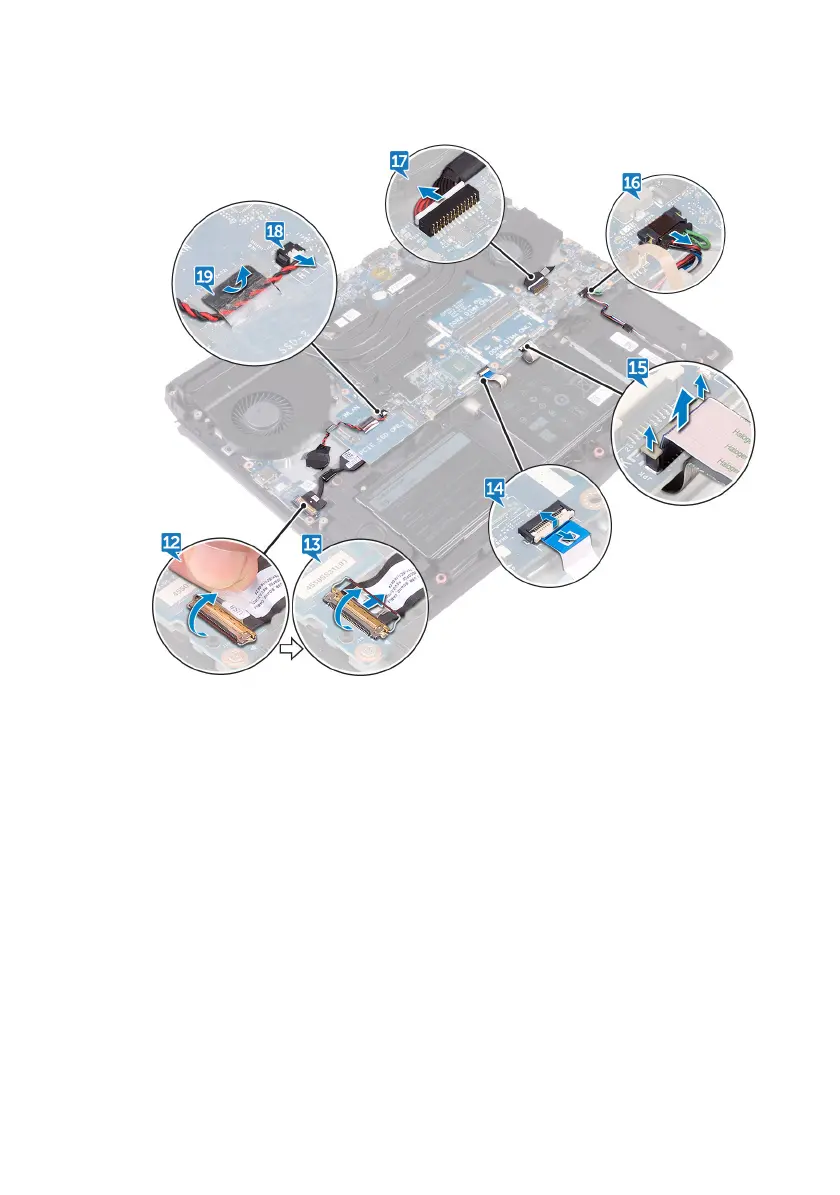

19 Peel the tape that secures the coin-cell battery cable to the system board.
20 Remove the screw (M2.5x5) that secures the USB Type-C port bracket to the
system board and lift the USB Type-C port bracket o the system board.
21 Remove the seven screws (M2.5x5) that secure the system-board assembly to
the palm-rest assembly.
70
