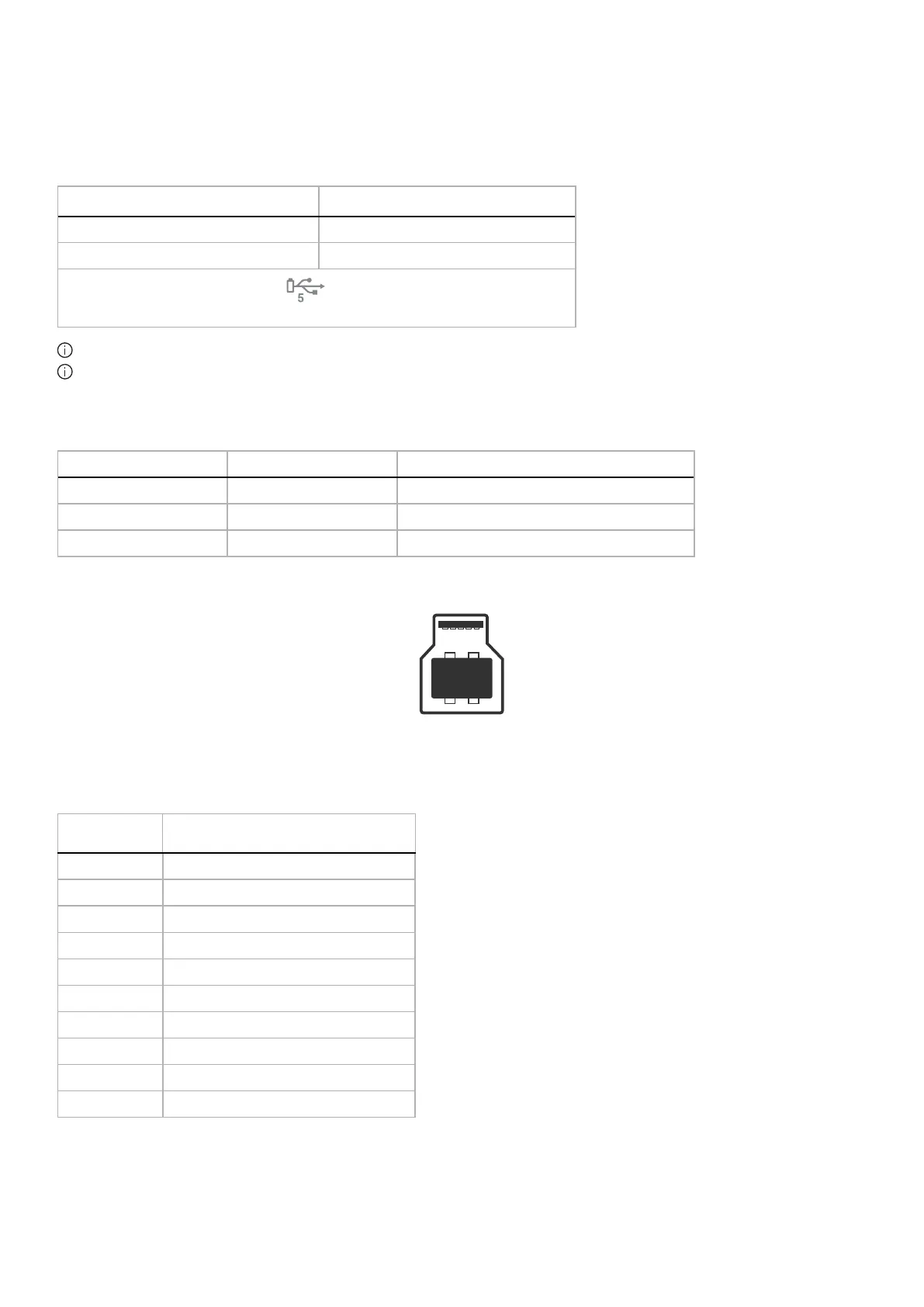

Universal Serial Bus (USB) interface
This section provides information about the USB ports available on your monitor.
Table 18. USB Ports
Port Location
One USB 5Gbps Type-B upstream Rear
Two USB 5Gbps Type-A downstream Bottom
Power charging port - the port with icon; supports up to 2 A fast-charging
capability if the device is BC1.2 compatible.
NOTE: USB Type-A functionality requires a USB Type-A-capable computer.
NOTE: The USB ports on the monitor work only when the monitor is turned on or in Standby mode. If you turn off the monitor
and then turn it on, the attached devices may take a few seconds to resume normal functionality.
Table 19. Transfer speed.
Transfer speed Data rate Maximum power consumption (each port)
SuperSpeed 5 Gbps 4.50 W
High speed 480 Mbps 4.50 W
Full speed 12 Mbps 4.50 W
USB upstream port
5
6 7 8 9
2 1
3 4
Figure 7. USB Type-B upstream port.
Table 20. Pin assignments - USB upstream port.
Pin number 9-pin side of the connector
1 VBUS
2 D-
3 D+
4 GND
5 StdB_SSTX-
6 StdB_SSTX+
7 GND_DRAIN
8 StdB_SSRX-
9 StdB_SSRX+
Shell Shield
