About your monitor
Bottom view
2 5 6 7 841 3 9
10

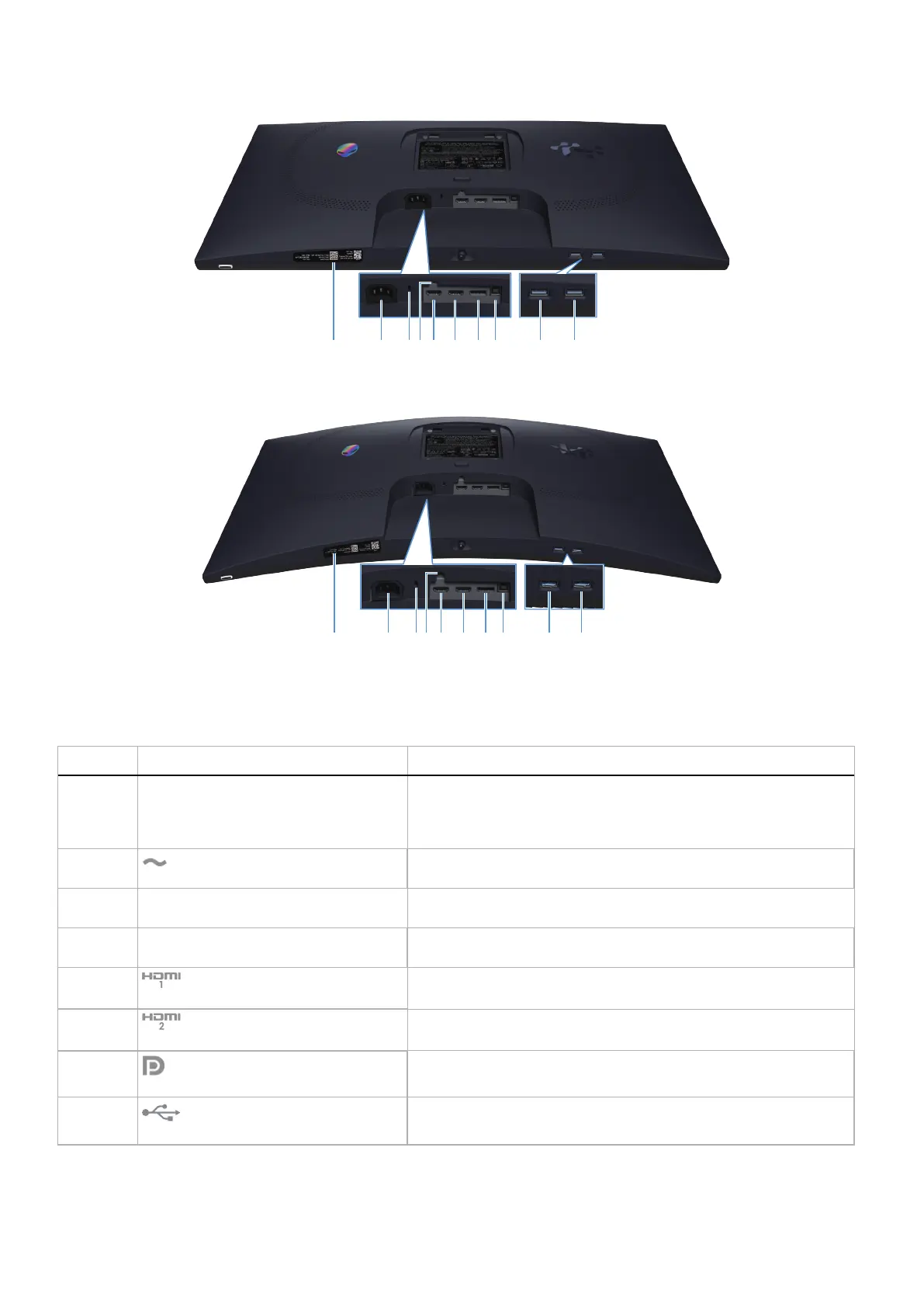

Figure 3. Bottom view of the monitor (AW2725DM)
1 9
10
2 5 6 7 843
Figure 4. Bottom view of the monitor (AW3225DM)
Table 4. Components and descriptions.
Label Description Use
1
My Alienware QR code, serial number, and
Service Tag label
See this label if you need to contact Dell for technical support. The
Service Tag is a unique alphanumeric identifier that enables Dell service
technicians to identify the hardware components in your monitor and
access warranty information.
2
Power connector
Connect the power cable (shipped with your monitor).
3
Security-lock slot
(based on Kensington Security Slot)
Secure your monitor using a security lock (purchased separately) to
prevent unauthorized movement of your monitor.
4
Stand-lock feature Lock the stand to the monitor using a M3x6 mm screw (screw not
included).
5
HDMI 1 port
Connect your computer with the HDMI cable (shipped with your
monitor) to this port.
6
HDMI 2 port
Connect your computer with the HDMI cable (shipped with your
monitor) to this port.
7
DisplayPort
Connect your computer with the DisplayPort-DisplayPort cable (shipped
with your monitor) to this port.
8
USB Type-B upstream port
Connect the USB cable (shipped with your monitor) to this port and
your computer to enable the USB ports on your monitor.
