Dell B2360DN Mono Laser User Manual

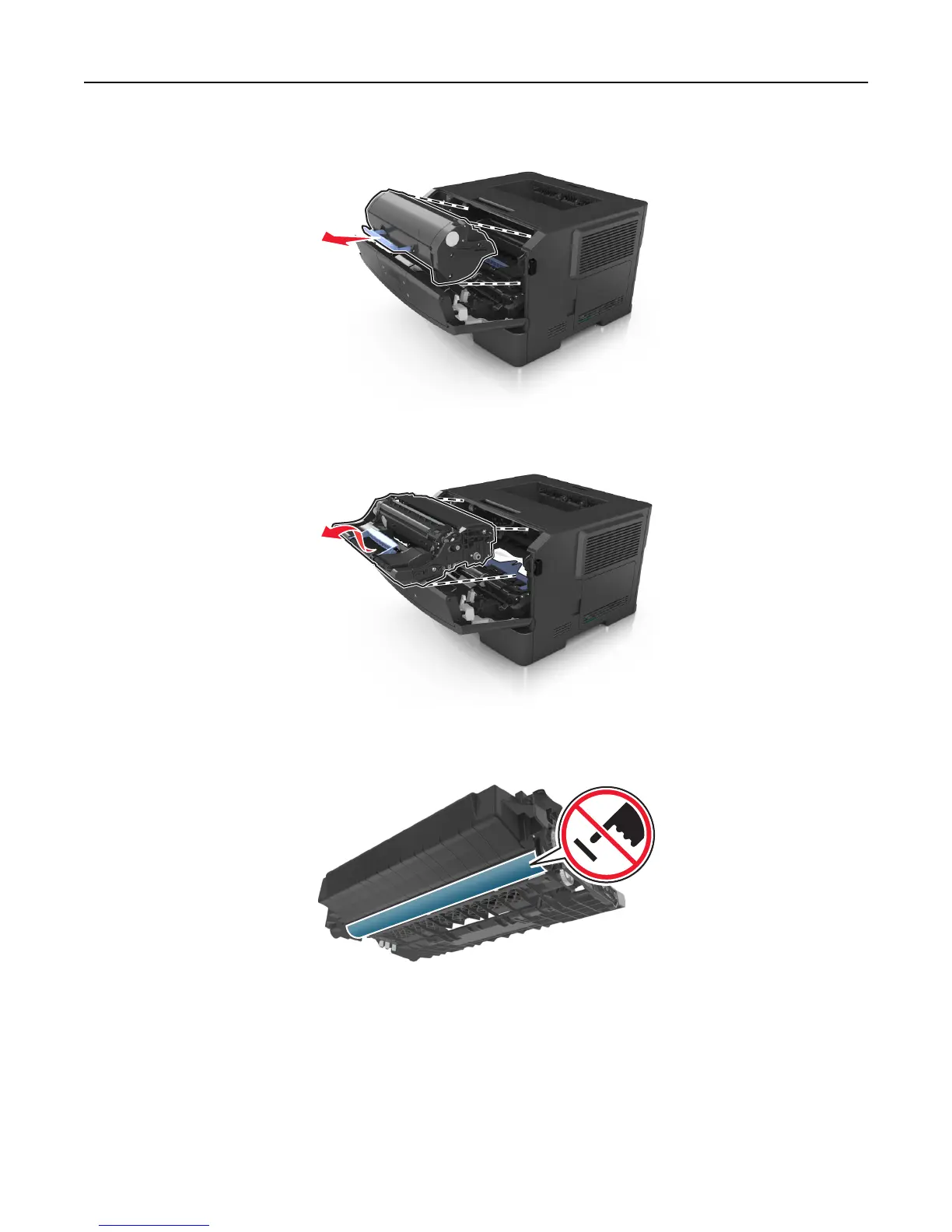

2 Pull the toner cartridge out using the handle.
3 Lift the blue handle, and then pull out the imaging unit from the printer.
Warning—Potential Damage: Do not touch the photoconductor drum. Doing so may affect the print quality of
future print jobs.
4 Place the imaging unit aside on a flat, smooth surface.
Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes.
Extended exposure to light can cause print quality problems.
Clearing jams 105

Dell B2360DN Mono Laser Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Standard Connectivity	USB 2.0, Ethernet
Duplex Printing	Yes
Output Capacity	150 sheets
Print Speed	Up to 40 ppm
Monthly Duty Cycle	80000 pages
Input Capacity	250 sheets
Memory	128 MB
First Page Out	6.5 sec
Operating Systems Supported	Linux
