Dell B2360DN Mono Laser User Manual

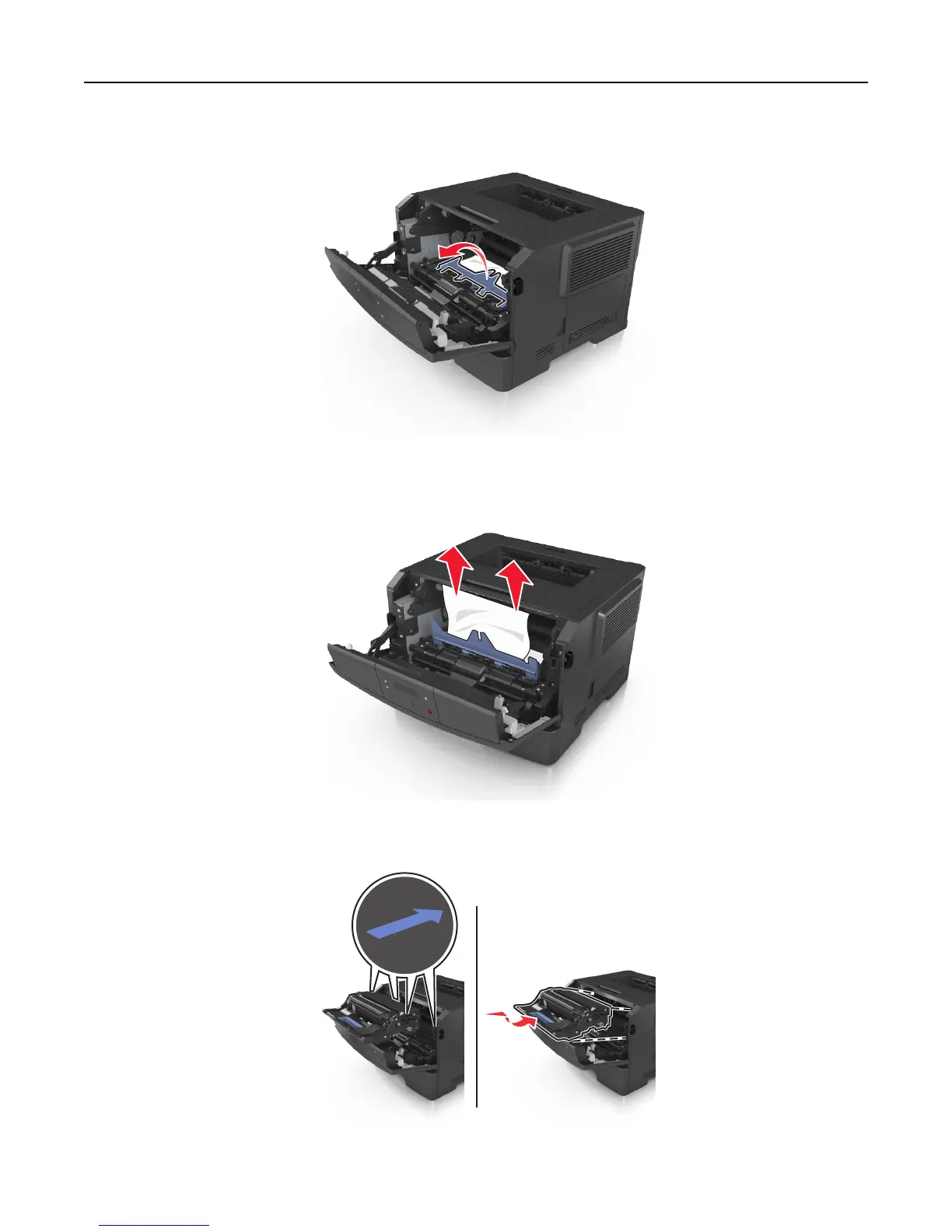

5 Lift the blue flap in front of the printer.
6 Firmly grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
7 Insert the imaging unit by aligning the arrows on the side rails of the unit with the arrows on the side rails inside
the printer, and then insert the imaging unit into the printer.
Clearing jams 106

Dell B2360DN Mono Laser Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Standard Connectivity	USB 2.0, Ethernet
Duplex Printing	Yes
Output Capacity	150 sheets
Print Speed	Up to 40 ppm
Monthly Duty Cycle	80000 pages
Input Capacity	250 sheets
Memory	128 MB
First Page Out	6.5 sec
Operating Systems Supported	Linux
