Camera
Removing the camera
1 Follow the procedure in Before working inside your computer.
NOTE: These instructions are applicable only for systems with a non-touch screen display.
2
Remove the:
a microSD
b base cover
c battery
d LCD bezel
e hinge cap
f LCD bezel

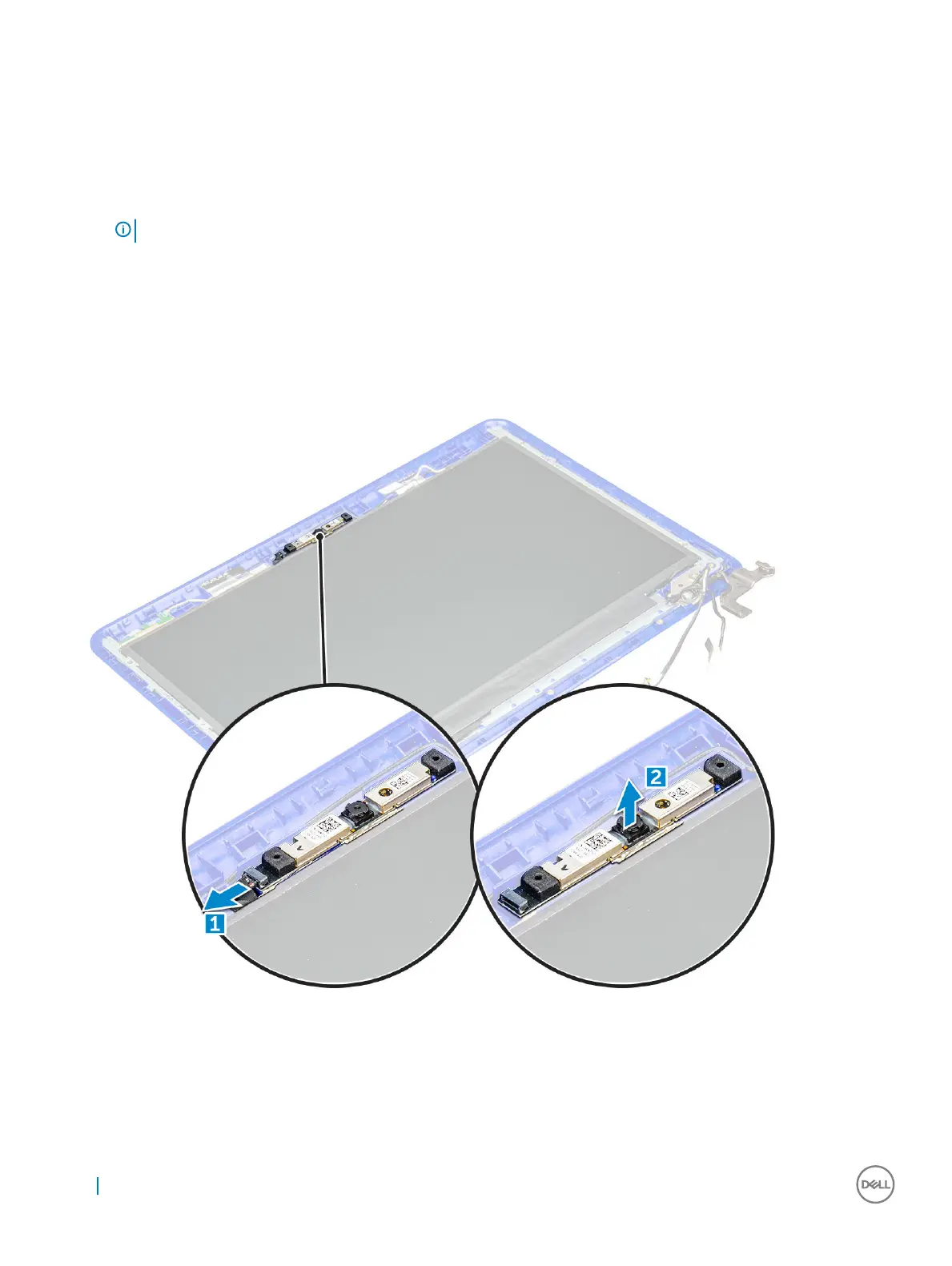

3 Disconnect the camera cable [1] and remove the camera module from the LCD assembly [2].
Installing the camera
1 Place the camera module in its slot on the LCD assembly.
2 Connect the camera cable to its connector on the camera.
3 Replace the bezel and gently press on the edges to snap the bezel into place.
