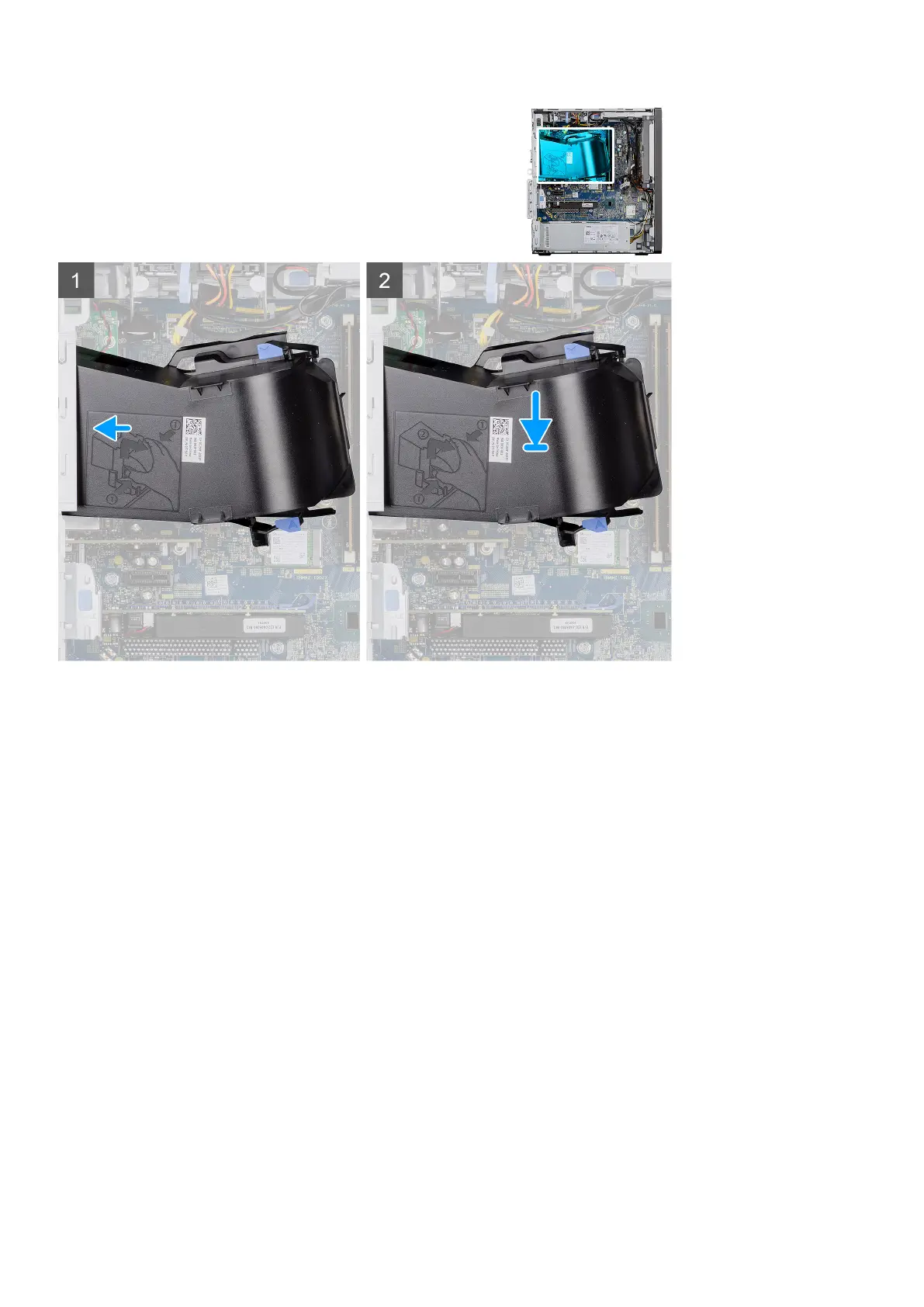

Steps
1. Position the fan duct to align it with the slots on the computer chassis.
2. Press the fan duct until it clicks into place.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Hard-drive assembly
Removing the 2.5-inch hard-disk drive assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the fan duct.
About this task
The following images indicate the location of the 2.5-inch hard-disk drive assembly and provide a visual representation of the
removal procedure.
20
Disassembly and reassembly
