5. Lift the system board at an angle and remove the system board off the chassis.
Installing the system board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

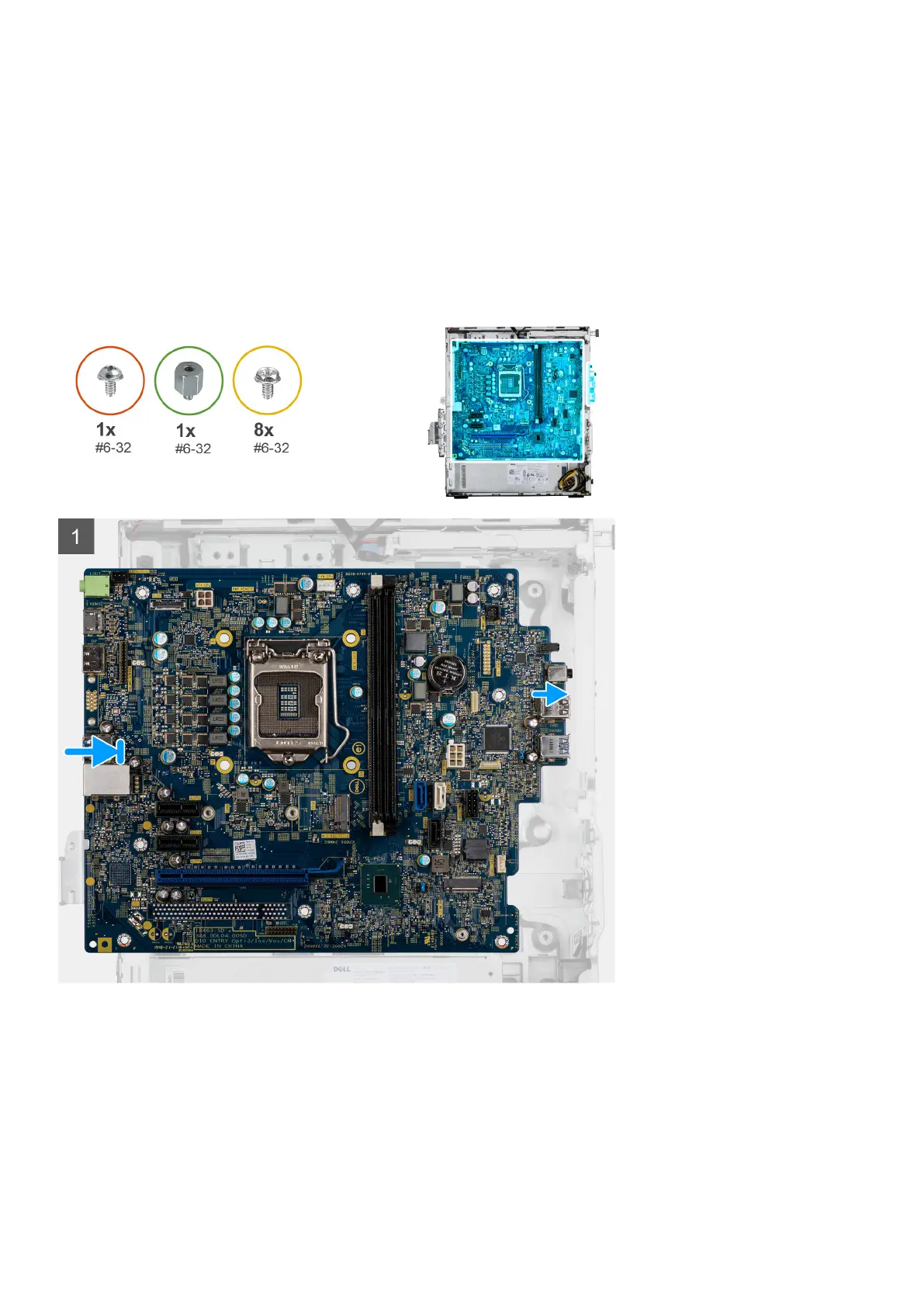

The following images indicate the location of the system board and provides a visual representation of the installation procedure.
Disassembly and reassembly 65
