Hard-Drive Indicator Patterns

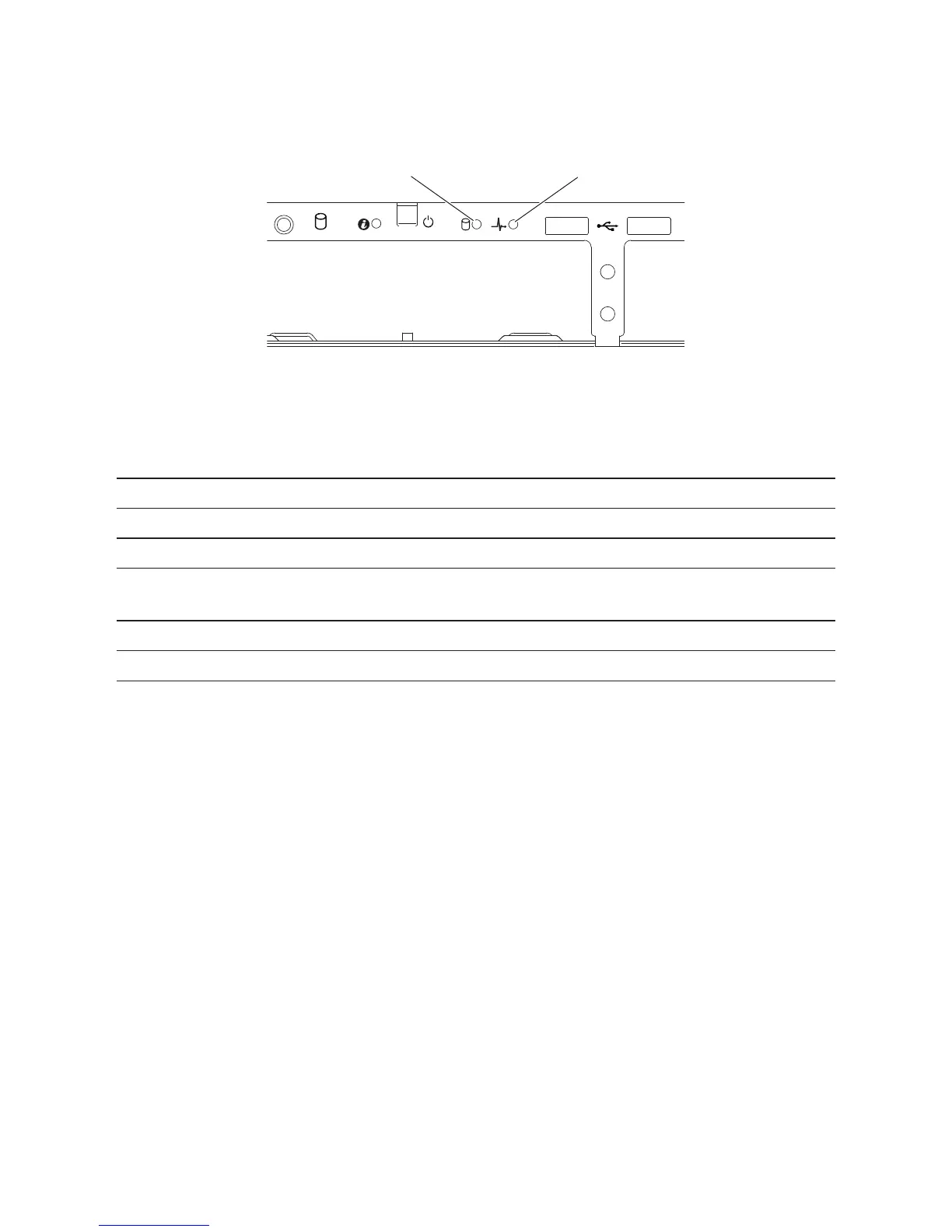

Figure 2. Hard Drive Indicators
0
1
2
1. hard-drive activity indicator
(green)
2. hard-drive status indicator
(green and amber)
Table 1. Hard Drive Indicator Status
Drive-Status Indicator Pattern Condition
O Slot empty
Solid green Hard drive online/access
Blinks green Hard drive rebuilding/ hard drive identication/preparing
for removal
Blinks green/amber Rebuild abort
Blinks amber Hard drive failed
