NIC Indicator Codes

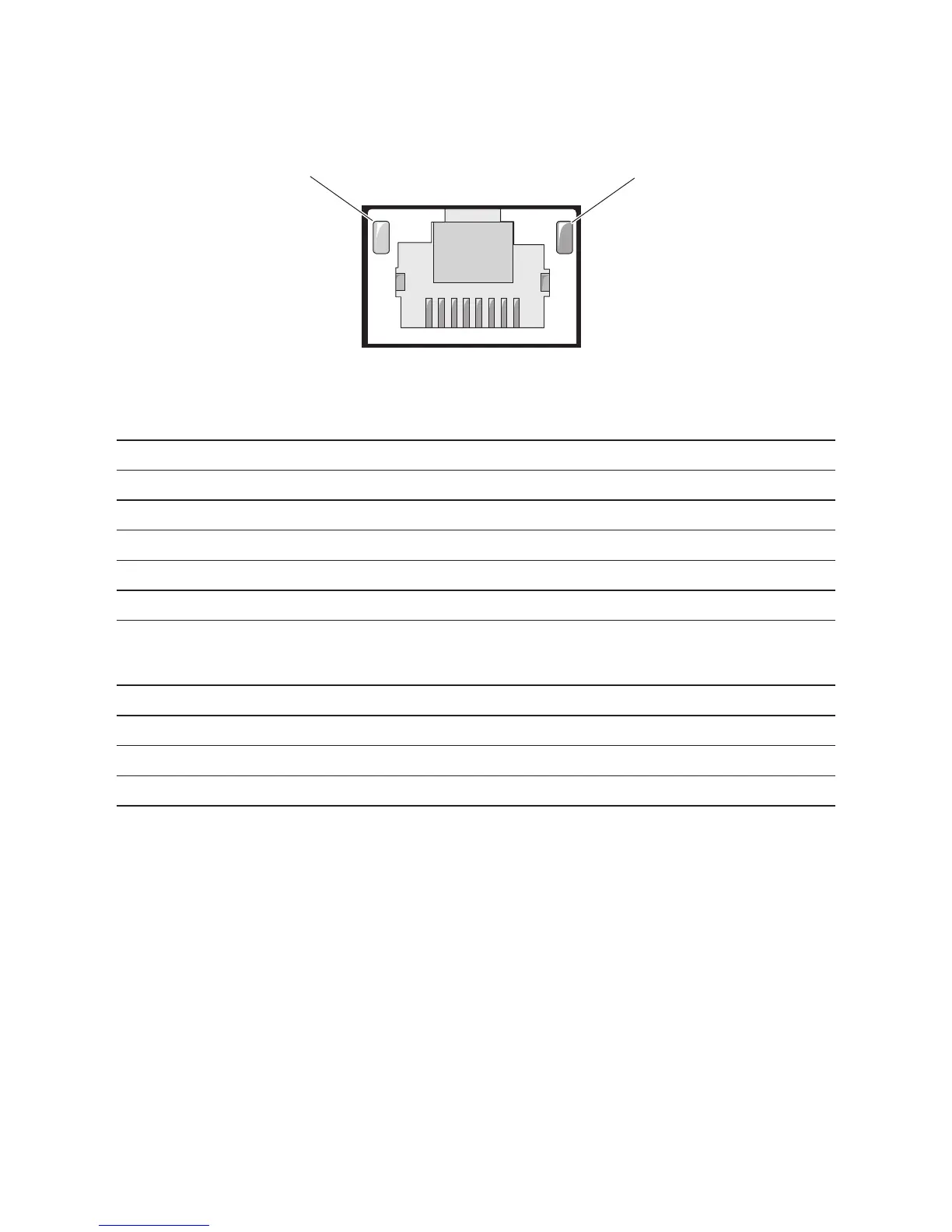

Figure 4. NIC Indicators
1
2
1. link indicator 2. activity indicator
NIC Status Indicator (link) Condition
Steady amber Link at 1 Gbps speed
Blinks amber Identifying port with 1 Gbps connection
Steady green Link at 100 Mbps speed
Blinks green Identifying port with 10 Mbps or 100 Mbps connection
O Link at 10 Mbps speed
NIC Status Indicator (activity) Condition
Steady green Link LAN / No access
Blinks green Accessing LAN
O Idle
