Replacing the Drive-Panel Insert
1
Slide the tab on the left side of the drive-panel insert under the center drive panel tab.
2
Rotate the drive-panel insert into place and snap the drive-panel insert tab over the corresponding tab
on the drive panel.
3
Ensure that the drive-panel insert is correctly seated in the drive panel.

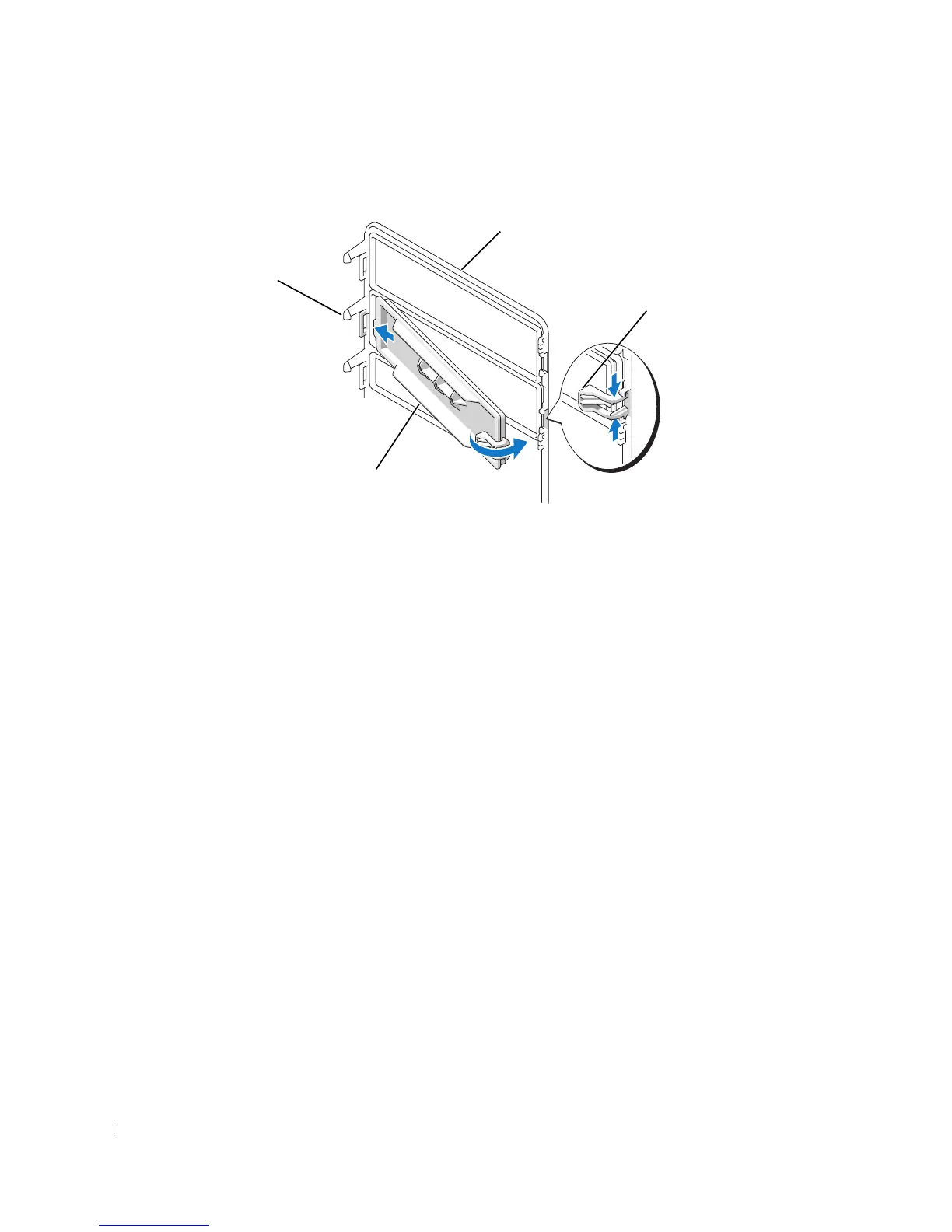

1 center drive-panel tab 2 drive panel 3 drive-panel insert tab
4 drive-panel insert
