110 Removing and Installing Parts
6 Pull the sliding plate to the right and hold in place.
7 Slide the floppy drive out of the floppy drive bay.

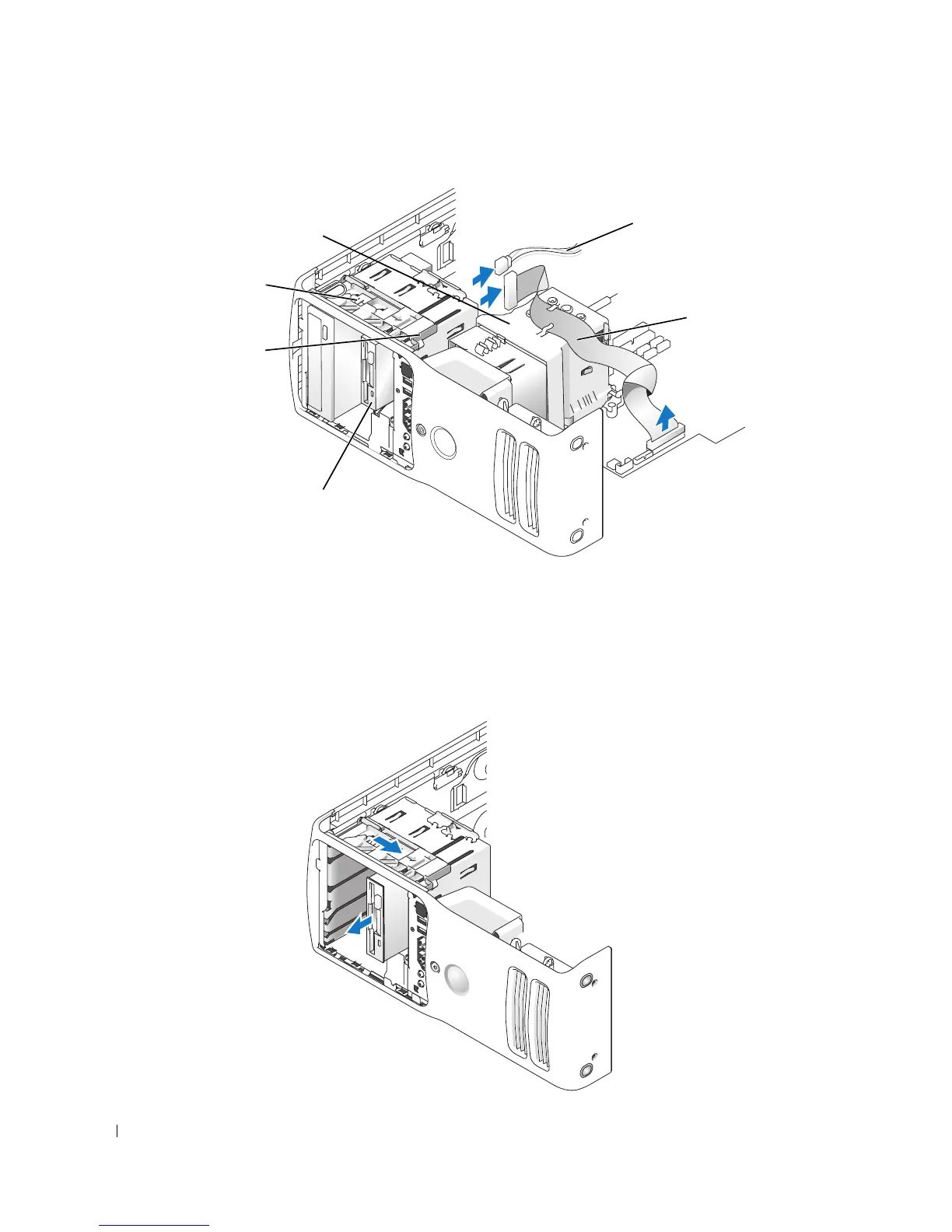

1 power cable 2 floppy drive cable 3 floppy drive
4 sliding plate lever 5 sliding plate 6 processor shroud
1
2
3
5
4
6
