Dell Dimension DMC - System Board

58 Adding Parts
www.dell.com | support.dell.com

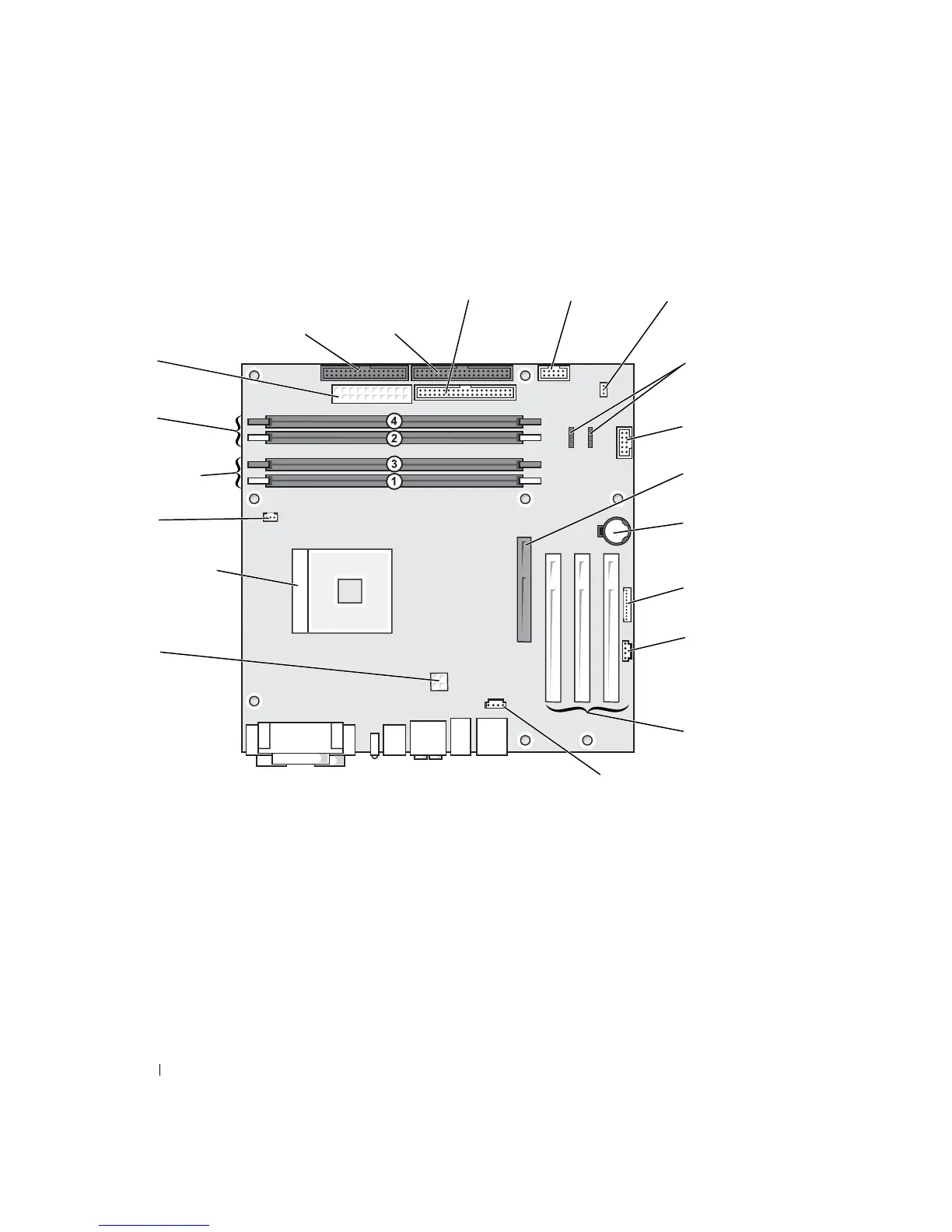

System Board
memory module
connectors
(DDR1, DDR3)
main power
connector
(J3J1)
microprocessor
connector (J2E1)
fan connector
(J1F1)
back of computer
microprocessor
power connector
(J5B1)
battery socket
(XBT9E1)
PCI card slots (3)
(PCI1, PCI2, PCI3)
serial ATA
connectors (2)
(J8G2 and J8G1)
front-panel I/O
connector (J9G1)
TAD connector (J6B1)
memory module
connectors (DDR2,
DDR4)
hard drive
connector
(J6J2)
CD audio
connector (J9C1)
front panel audio
connector (J9C2)
floppy drive
connector
(J4J1)
CD drive
connector
(J6J1)
control panel
connector
(J7J2)
password jumper
(CLR PSSWRD)
AGP connector (J6C1)
