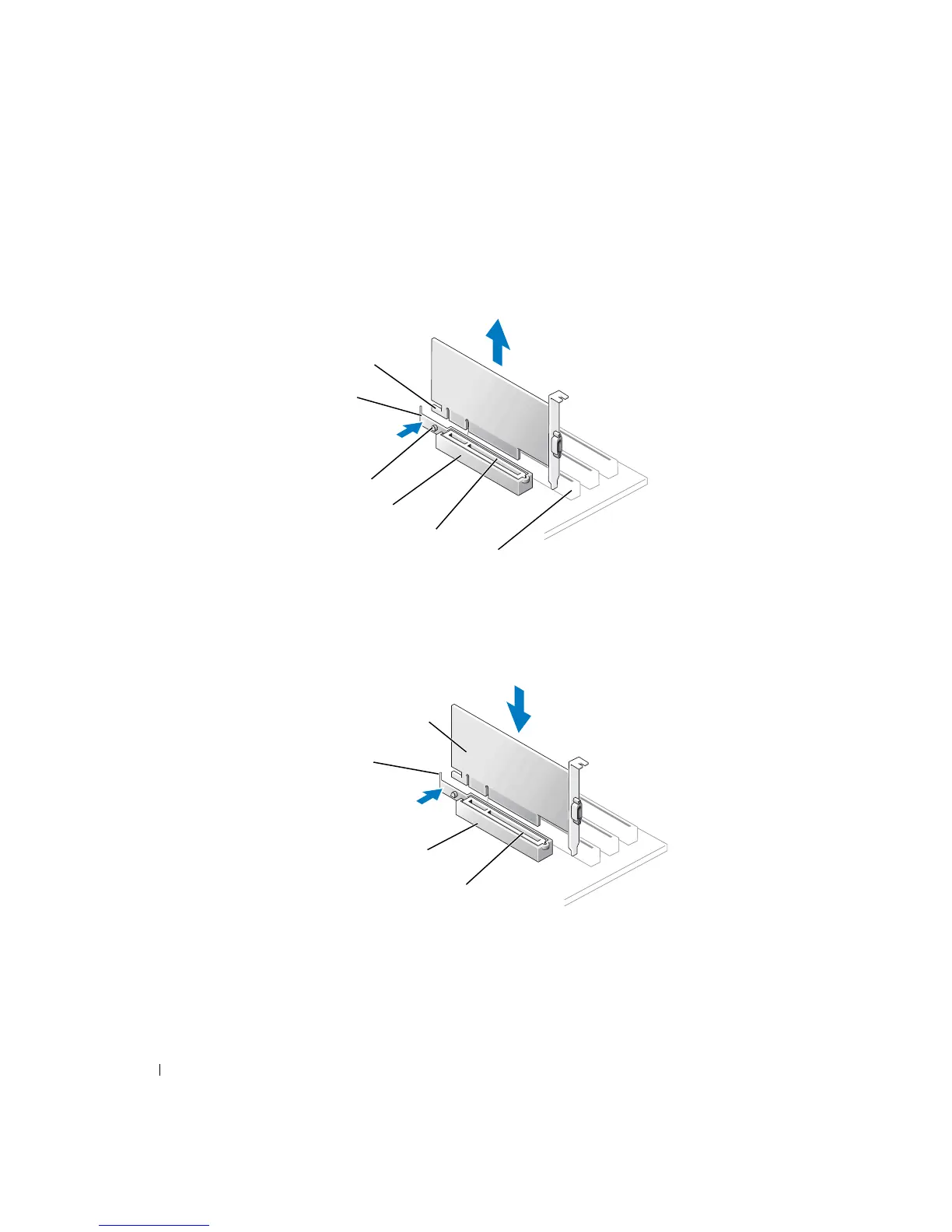

Removing an AGP Card
1
Press the card lever toward the PCI connector.
2
Pull the card up and out of the card clip.
Installing an AGP Card
1
To add or replace the card, press the card lever toward the PCI connector and gently press the
card into the AGP connector until it clicks into place.
2
Release the card lever, ensuring that the tab fits into the notch on the front end of the card.
3
Secure the card with the securing screw.
tab
card clip
lever
notch
PCI connector
AGP connector
back of computer
card clip
lever
AGP card
card clip
slot connector
