Technical Overview: Dell Dimension E520 Service Manual
file:///T|/htdocs/systems/dimE520/en/SM_EN/techov.htm[10/16/2012 1:04:43 PM]

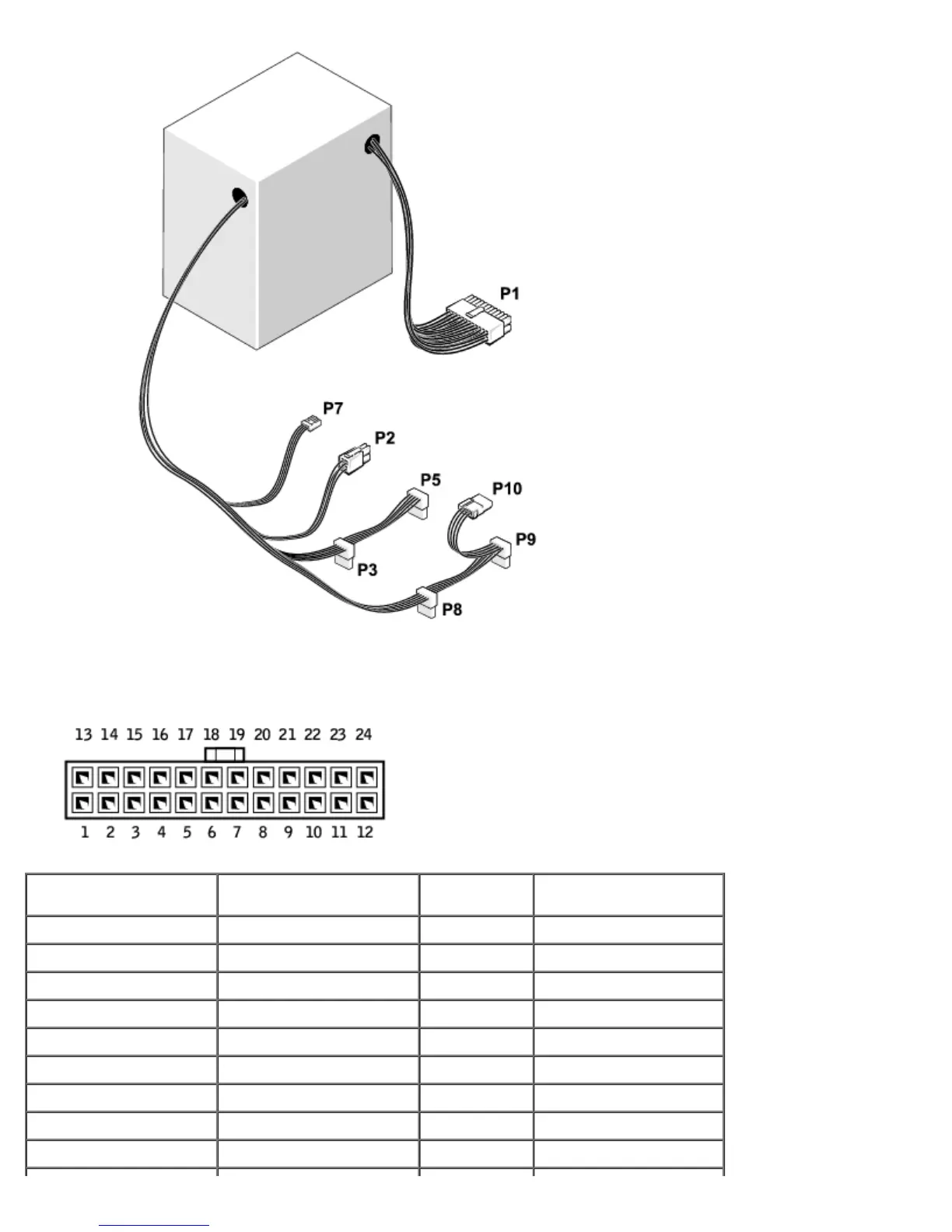

DC Power Connector P1
Pin Number Signal Name Color Wire Gauge
1 +3.3 VDC Orange 18-AWG
2 +3.3 VDC Orange 18-AWG
3 COM Black 18-AWG
4 +5 VDC Red 18-AWG
5 COM Black 18-AWG
6 +5 VDC Red 18-AWG
7 COM Black 18-AWG
8 POK Gray 18-AWG
9 +5 VFP Purple 18-AWG
