About Your Computer
Dell™ Dimension™ E520 Service Manual
Front View of the Computer
Back View of the Computer
Back Panel Connectors

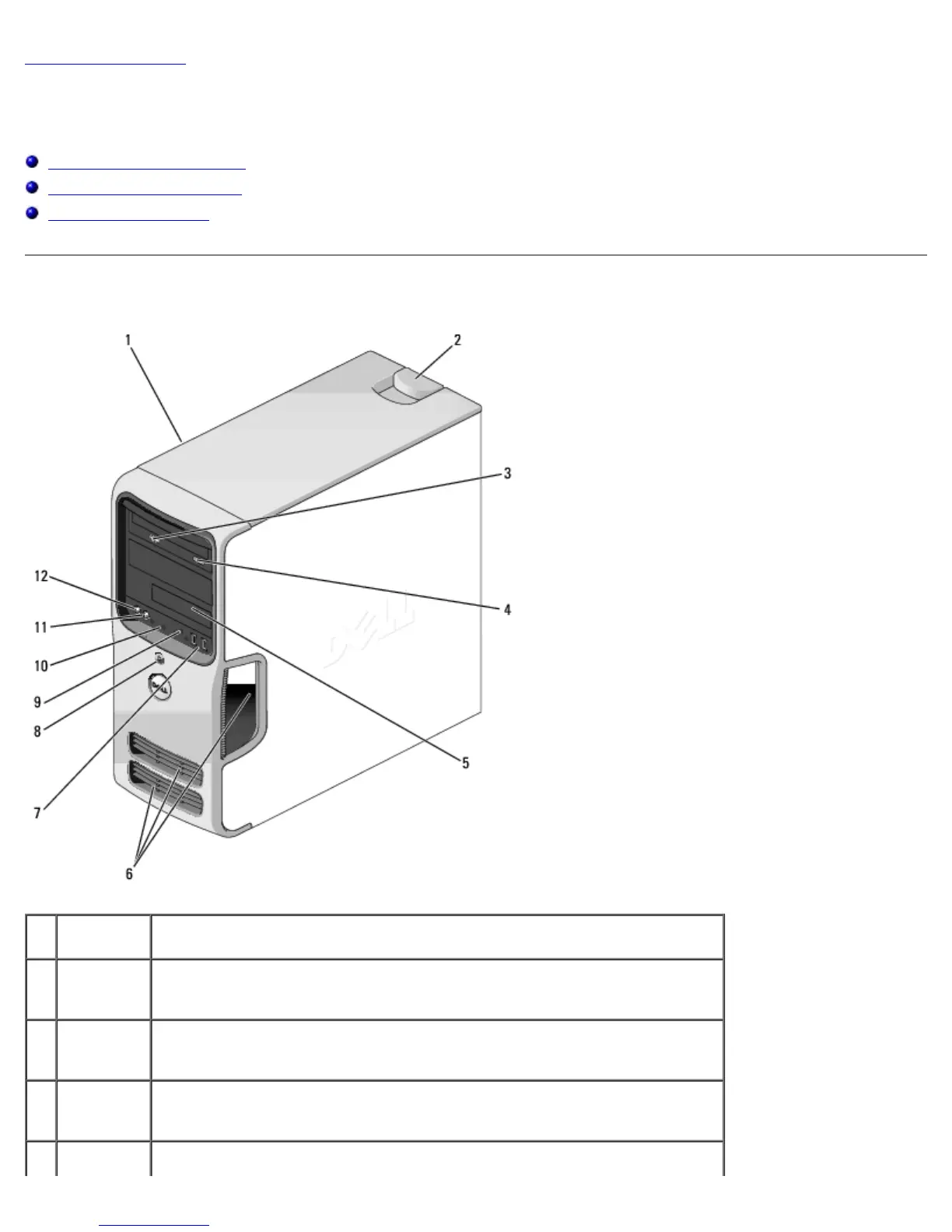

Front View of the Computer
1 Service
Tag
Use the Service Tag to identify your computer when you access the Dell
Support website or contact support.
2 cover
release
latch
Use this latch to remove the cover.
3 CD or DVD
activity
light
The CD or DVD drive light is on when the computer reads data from, or writes
data to the CD or DVD drive.
4 CD or DVD
eject
button
Press the CD or DVD eject button to eject a disc from the CD or DVD drive.
5 FlexBay Can contain an optional floppy drive or optional Media Card Reader.

Dell Dimension E520 Specifications

General

Memory	Up to 4GB DDR2 SDRAM
Networking	Integrated 10/100 Ethernet
Power Supply	305W
Processor	Intel Pentium D, Intel Core 2 Duo
Storage	Up to 500GB SATA HDD
Optical Drive	DVD-ROM, DVD+/-RW
Graphics	Integrated Intel GMA 950
Audio	Integrated 7.1 channel audio
USB Ports	8 USB 2.0 ports
Operating System	Windows XP, Windows Vista
Ports	VGA, serial, parallel, PS/2, audio in/out
Expansion Slots	1 PCI-e x16, 2 PCI
