Removing and Installing Parts: Dell Dimension E520 Service Manual
file:///T|/htdocs/systems/dimE520/en/SM_EN/parts.htm[10/16/2012 1:05:24 PM]

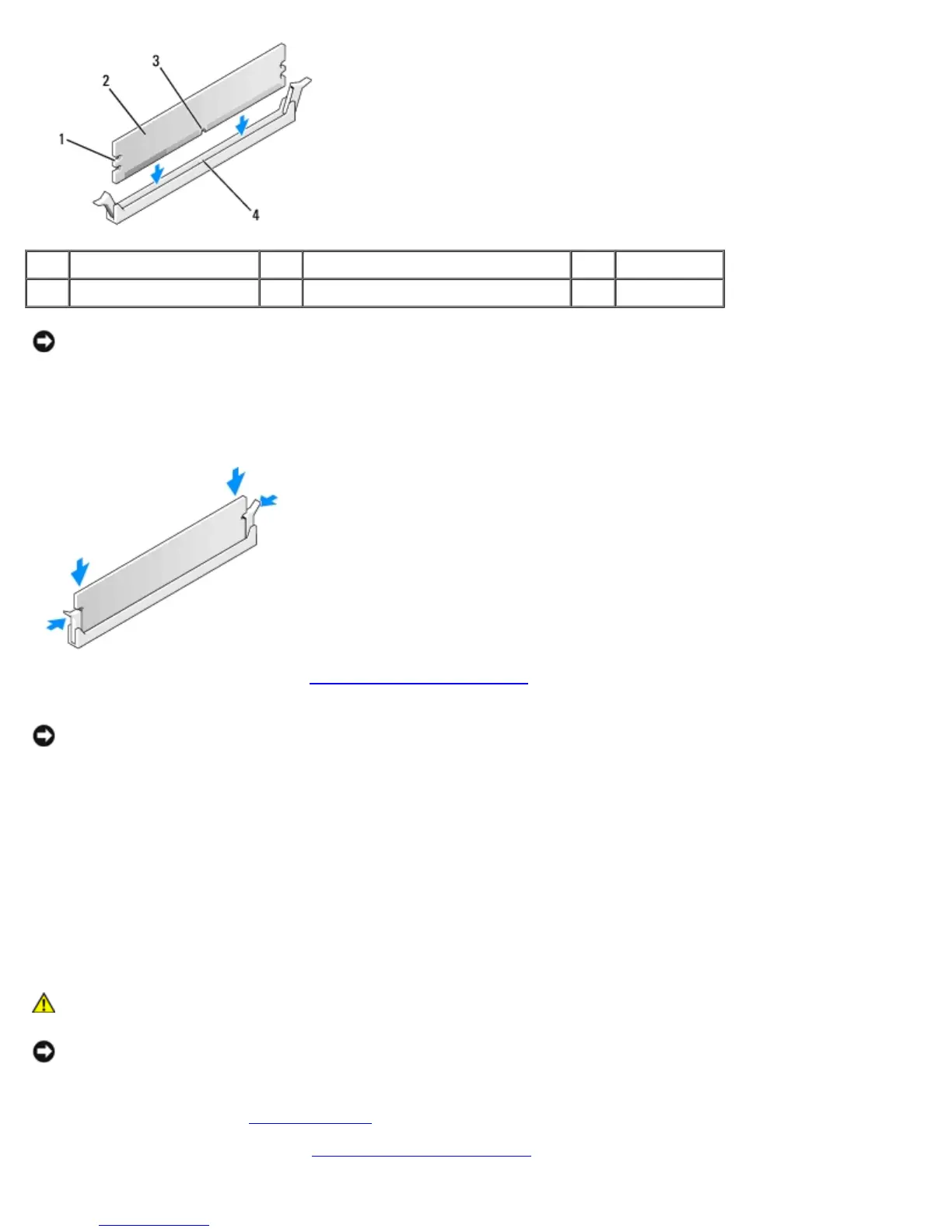

1 cutouts (2) 2 memory module 3 notch
4 crossbar
NOTICE: To avoid damage to the memory module, press the module straight down into the connector while you apply
equal force to each end of the module.
5. Insert the module into the connector until the module snaps into position.
If you insert the module correctly, the securing clips snap into the cutouts at each end of the module.
6. Replace the computer cover (see Replacing the Computer Cover).
NOTICE: To connect a network cable, first plug the cable into the network device and then plug it into the computer.
7. Connect your computer and devices to electrical outlets and turn them on.
8. Right-click the My Computer icon and click Properties.
9. Click the General tab.
10. To verify that the memory is installed correctly, check the amount of memory (RAM) listed.
Removing Memory
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
NOTICE: To prevent static damage to components inside your computer, discharge static electricity from your body
before you touch any of your computer's electronic components. You can do so by touching an unpainted metal surface
on the computer chassis.
1. Follow the procedures in Before You Begin
.
2. Remove the computer cover (see Removing the Computer Cover
).
