4 COM Black
5 +12 VB DC White

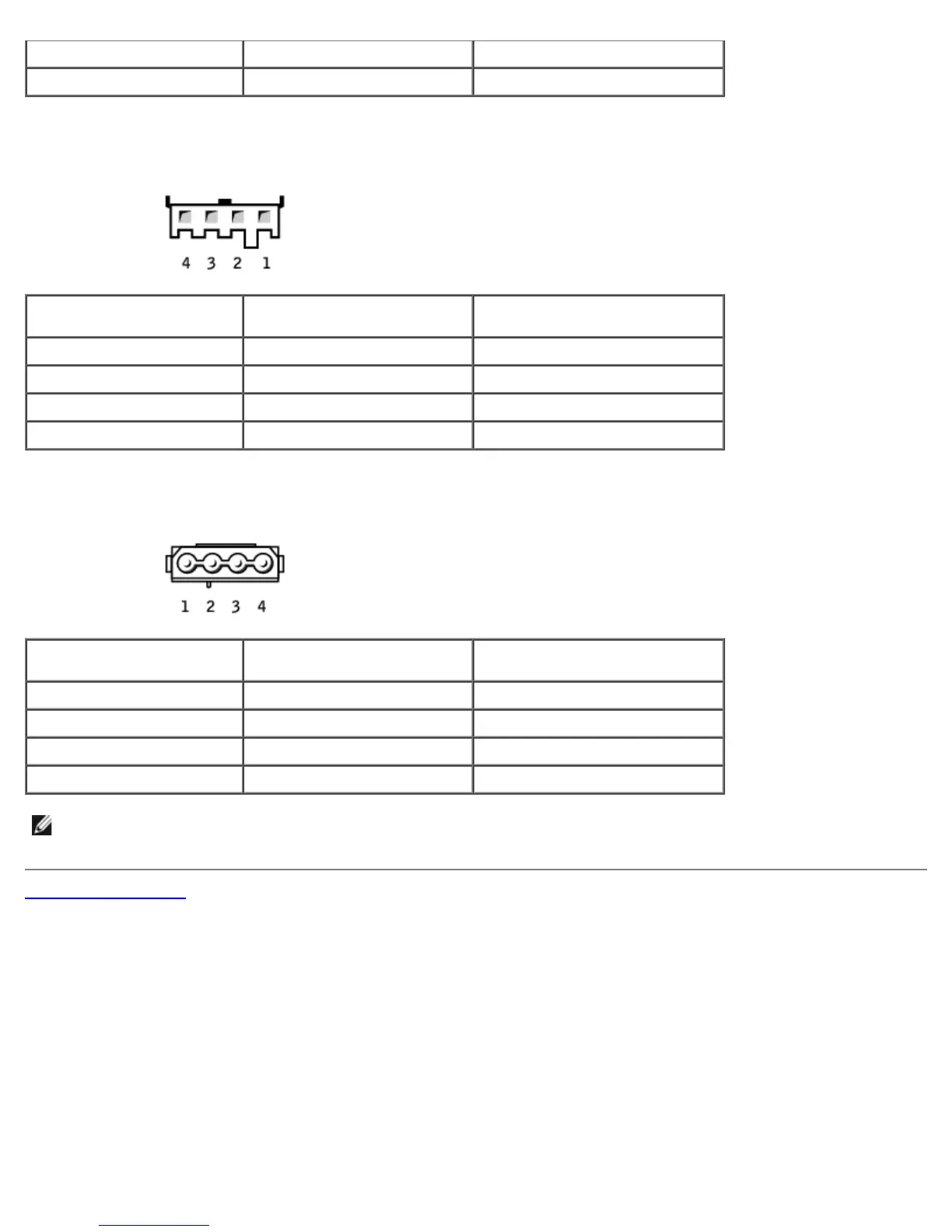

DC Power Connector P7
Pin Number Signal Name 18-AWG Wire
1 +5 VDC Red
2 COM Black
3 COM Black
4 +12 A VDC Yellow
DC Power Connector P10
Pin Number Signal Name 18-AWG Wire
1 +12 VA DC Yellow
2 COM Black
3 COM Black
4 +5V DC Red
NOTE: The P10 connector is intended for use with PCI Express graphics cards that have power requirements exceeding
75 watts.
