17" LCD Color Monitor Dell E178FPC
30

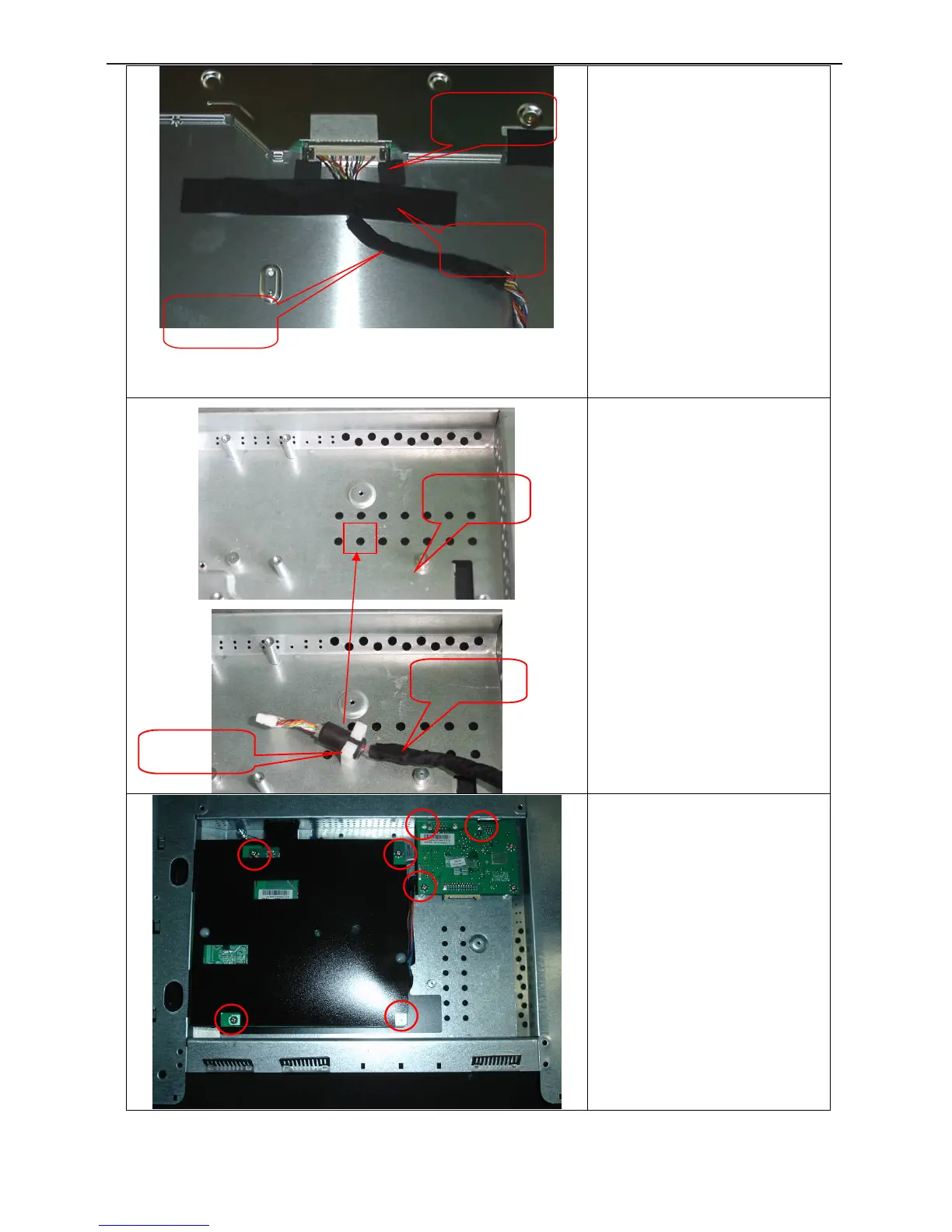

Install:
Fix the LVDS connector by black
tape and EVA washers.
Note: Make LVDS connector’s
metal side adown for HYDIS,
CPT, SAMSUNG and LG panel
and upturned for AU panel.
Install:
The cable hook trussing the LVDS
cable is fixed on the second hole
of main frame as the figure show
Remove the Boards:
Remove the seven screws by
Torque B and remove the Power
Board and Main Board.
Main Frame
LVDS Cable
Black tape
LVDS Cable
EVA washers
Cable hook
To Next Page
