Dell E248WFP - Bottom View; Monitor Specifications; Power Management Modes; Pin Assignments

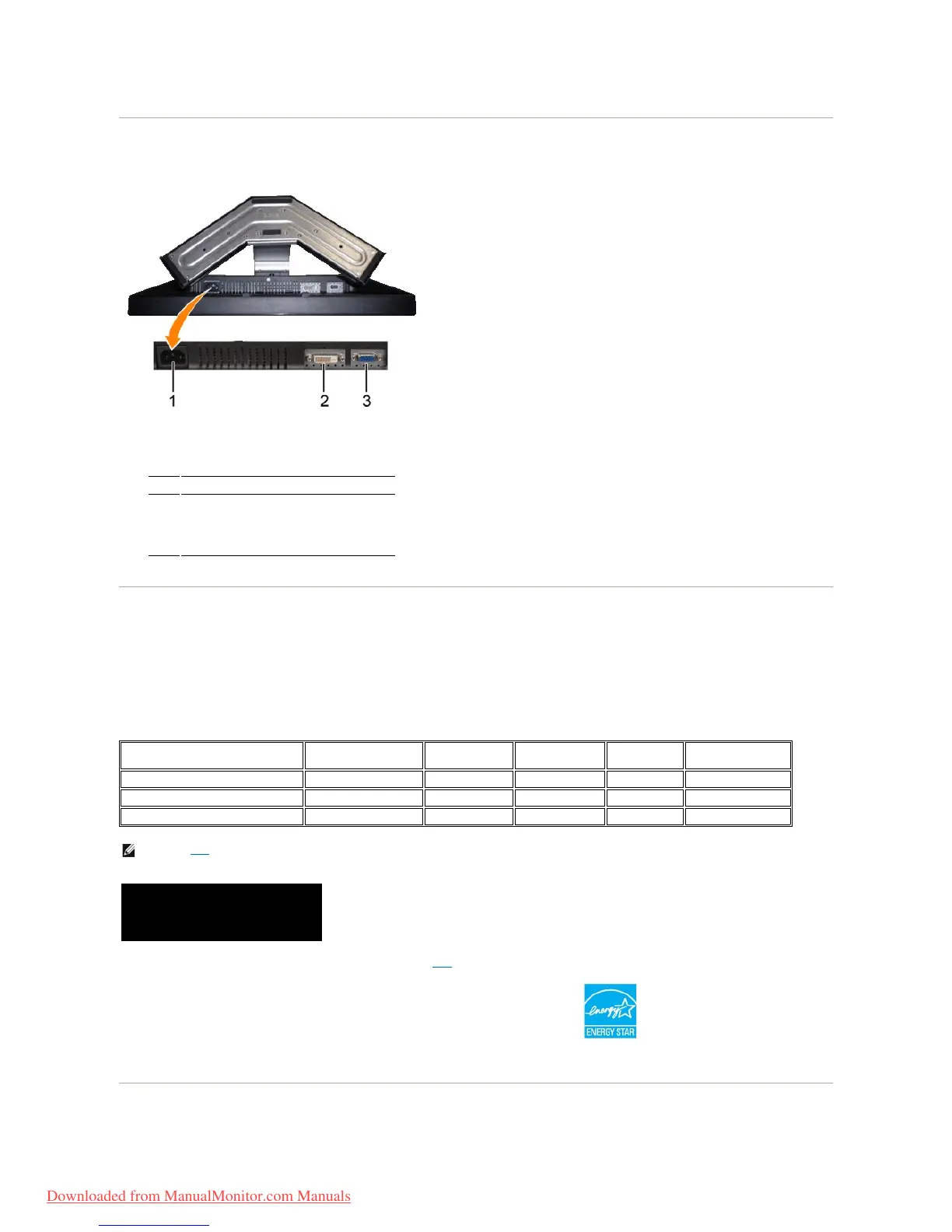

Bottom View

Bottom view

Monitor Specifications
The following sections give you information about the various power management modes and pin assignments for various connectors for your monitor.
Power Management Modes
If you have VESA's DPMS compliance display card or software installed in your PC, the monitor automatically reduces its power consumption when not in use.
This is referred to as Power Save Mode*. If input from keyboard, mouse or other input devices is detected by the computer, the monitor will automatically
"wake up". The following table shows the power consumption and signaling of this automatic power-savingfeature:
Activate the computer and wake up the monitor to gain access to the OSD.
* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.
Pin Assignments
Label
Description
1
AC power cord connector
2
DVI connector
3
VGA connector
VESA Modes
Horizontal Sync
Vertical Sync
Video
Power
Indicator
Power Consumption
Normal operation
Active
Active
Active
Green
50 W (typical)
Active-off mode
Inactive
Inactive
Blanked
Amber
Less than 2 W
Switch off
-
-
-
Off
Less than 1 W
NOTE: The OSD functions only in the 'normal operation' mode. Otherwise one of the following
messages appears depending upon the selected input.
In Power Save Mode
Press computer power button
or any key on keyboard or move mouse
This monitor is ENERGY STAR®-compliant as well as TCO '99 / TCO '03 power management compatible.
