Dell Embedded Box PC 3000 - Mounting the Embedded Box PC on a DIN Rail

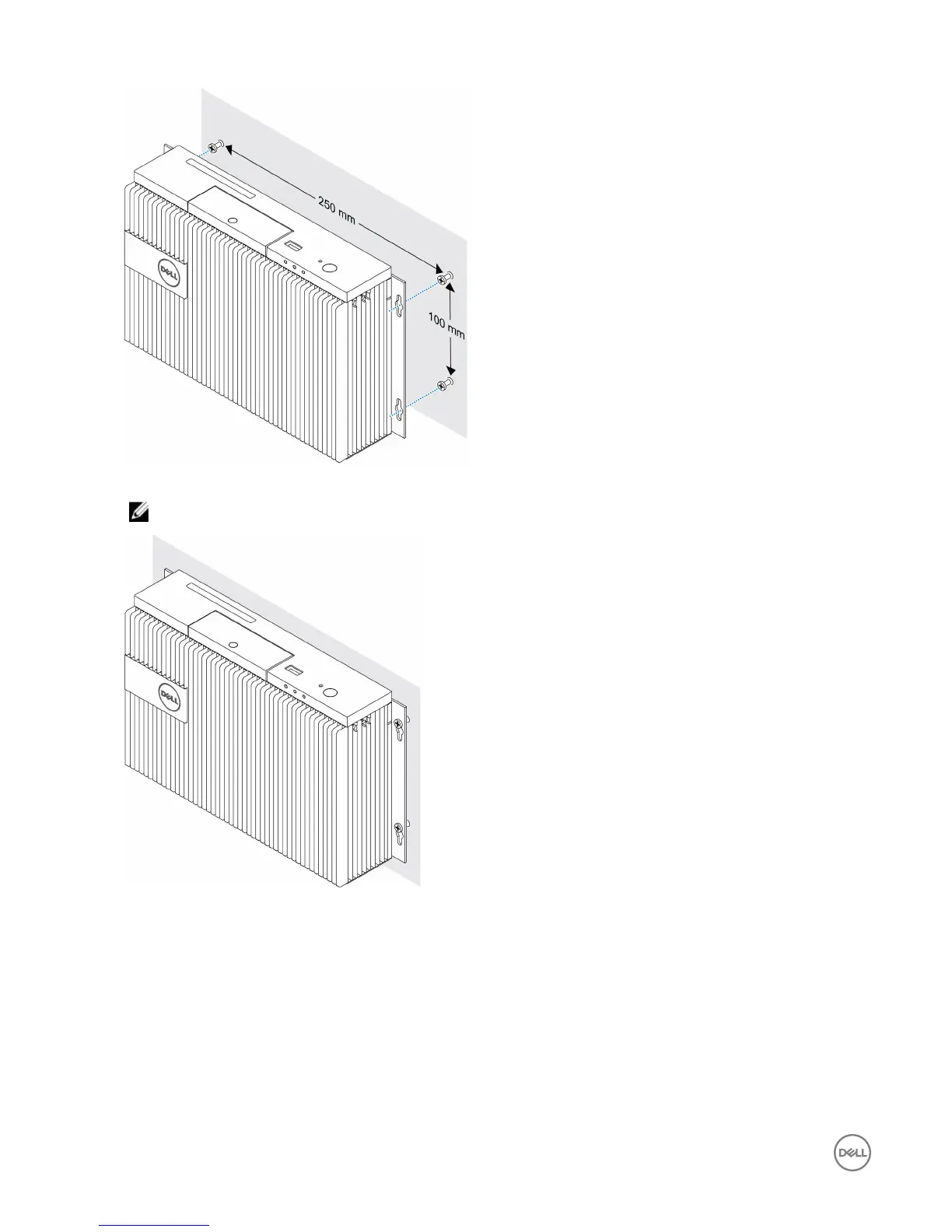

5. Secure the Embedded Box PC to the wall.
NOTE: Torque the screws (M4x6) at 5 to 5.4 kilograms-centimeter (4.3 to 4.7 pounds-inch).
Mounting the Embedded Box PC on a DIN rail
The Embedded Box PC can be mounted on a DIN rail by using DIN-rail clips.
Hardware required for DIN-rail
• Two DIN-rail clips
• Two M4x7 screws (Screw pitch 18 mm)
DIN-rail mounting holes:
14
