Pin Signal Pin Signal Pin Signal
5 GND 10 GND 15 DDCCLK

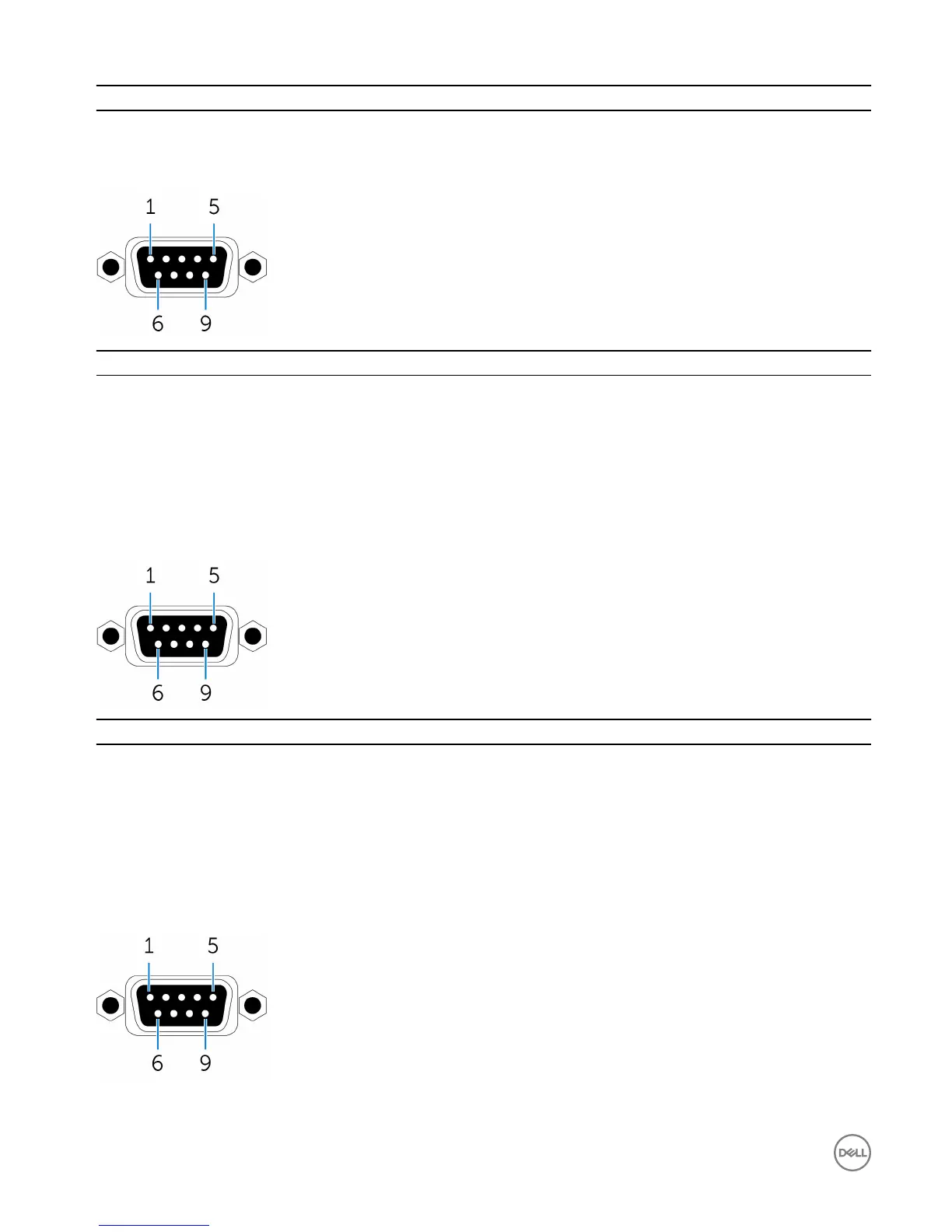

RS232 connector mapping
Pin Signal Pin Signal
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND
RS485 connector mapping
Pin
Signal Pin Signal
1 DATA- 6 NC
2 DATA+ 7 NC
3 NC 8 NC
4 NC 9 NC
5 GND
CANbus connector mapping
8
