Dell Embedded Box PC 3000 - Page 34

Pin Signal Pin Signal
25 NC 13 NC
24 NC 12 NC
23 NC 11 NC
22 NC 10 NC
21 NC 9 NC
20 NC 8 GND
19 TCA9555 P15 7 5 V
18 TCA9555 P14 6 TCA9555 P05
17 TCA9555 P13 5 TCA9555 P04
16 TCA9555 P12 4 TCA9555 P03
15 TCA9555 P11 3 TCA9555 P02
14 TCA9555 P10 2 TCA9555 P01
1 TCA9555 P00

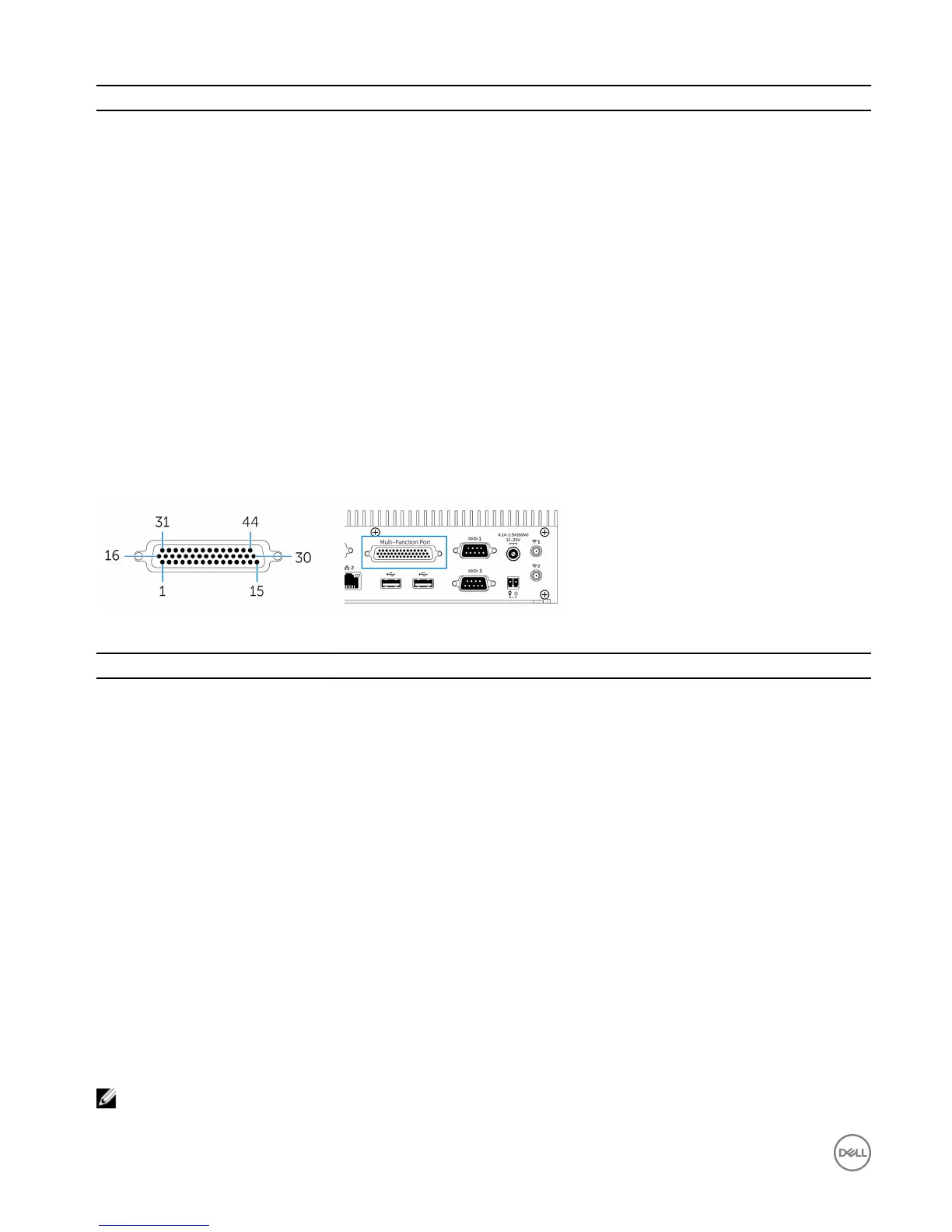

The following figure shows the Multi-function port pin number mapping on the Embedded Box PC.
The following table shows the Multi-function port pin definition details.
Pin
Signal Pin Signal Pin Signal
1 LINE1_JD 16 FRONT_JD 31 LINE1_RIN
2 MIC1_JD 17 LINEOUT_R 32 GND
3 MIC_RIN 18 GND 33 LINE1_LIN
4 GND 19 LINEOUT_L 34 +5V
5 MIC_LIN 20 GND 35 TCA9555 P03
6 TCA9555 P05 21 TCA9555 P04 36 TCA9555 P00
7 TCA9555 P02 22 TCA9555 P01 37 TCA9555 P13
8 TCA9555 P15 23 TCA9555 P14 38 TCA9555 P10
9 TCA9555 P12 24 TCA9555 P11 39 DNC
10 MSCK 25 DNC 40 NRIB#
11 GND 26 GND 41 NRTSB#
12 MSDA 27 NCTSB# 42 COM2_GND
13 KBDA 28 NDSRB# 43 NTXDB_422RXP
14 VCC_PS2 29 NDTRB#_422RXN 44 NDCDB#_422TXN
15 KBCK 30 NRXDB_422TXP
NOTE: DNC indicates Do Not Connect.
