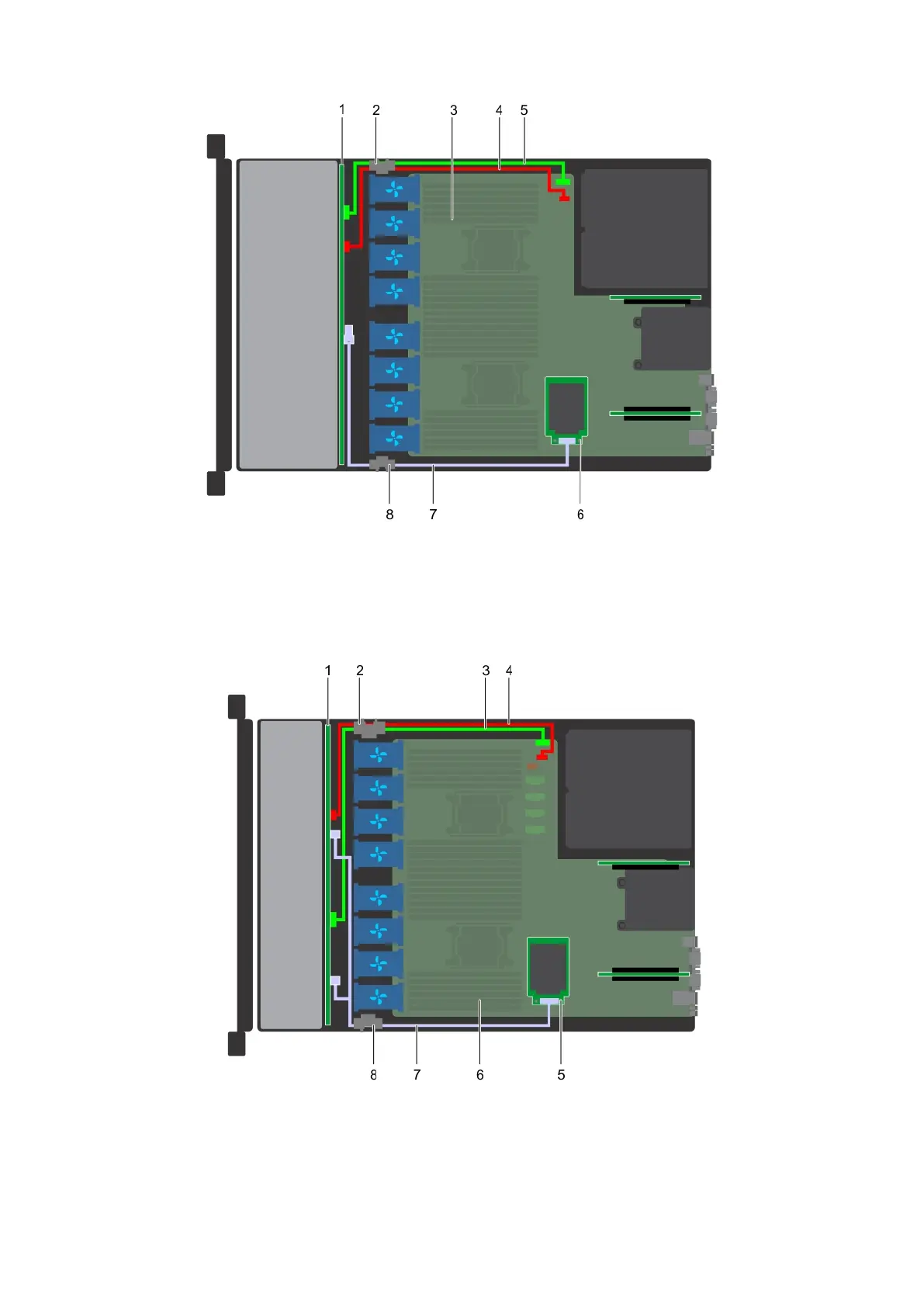

Figure 91. Cable routing - 4 x 3.5 drive backplane with mini PERC
1.
drive backplane 2. cable routing clip
3. system board 4. backplane power cable(BP: J_BP_SIG to MB: J_BP_SIG1)
5. backplane signal cable(BP: J_BP_SIG to MB: J_BP_SIG1) 6. mini PERC card
7. SAS cable(BP: J_SAS_A to MB: J_STORAGE1) 8. cable routing clip
Figure 92. Cable routing - 8 x 2.5 drive backplane with mini PERC
1.
drive backplane 2. cable routing clip
3. backplane signal cable(BP: J_BP_SIG to MB: J_BP_SIG1) 4. backplane power cable(BP: J_BP_PWR_A1 to MB: J_BP1)
5. mini PERC card 6. system board
Installing and removing system components 141
