5. Holding the control panel by its sides, remove the control panel away from the system.
Next steps
Install the left control panel.
Installing the left control panel
Prerequisites
Follow the safety guidelines listed in Safety instructions on page 71.
Steps
1. Route the control panel cable through the side wall of the system.
2. Align the left control panel assembly with the control panel slot on the system and place the assembly in the slot on the system.
3. Connect the control panel cable to the system board connector and secure it using cable latch.
4. Using a Phillips #1 screwdriver, install the screws that secure the control panel to the system.

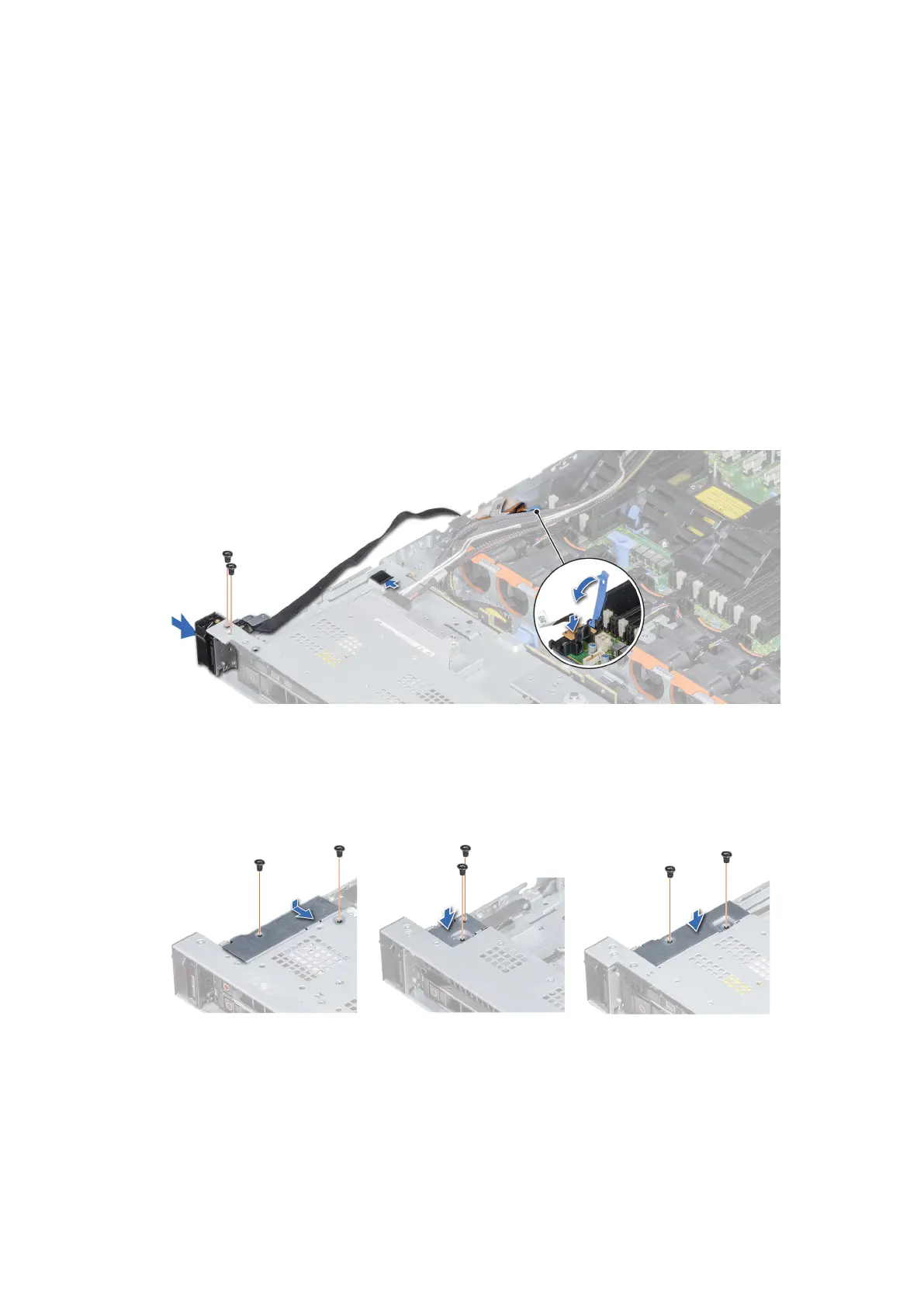

Figure 115. Installing the left control panel
5. Using Phillips #1 screwdriver, install the screws that secure the cable cover to the system.
Figure 116. Installing the cable cover
Next steps
1. Install the air shroud.
2. If applicable, install the cooling fan #1.
3. Follow the procedure listed in After working inside your system on page 72.
164
Installing and removing system components
